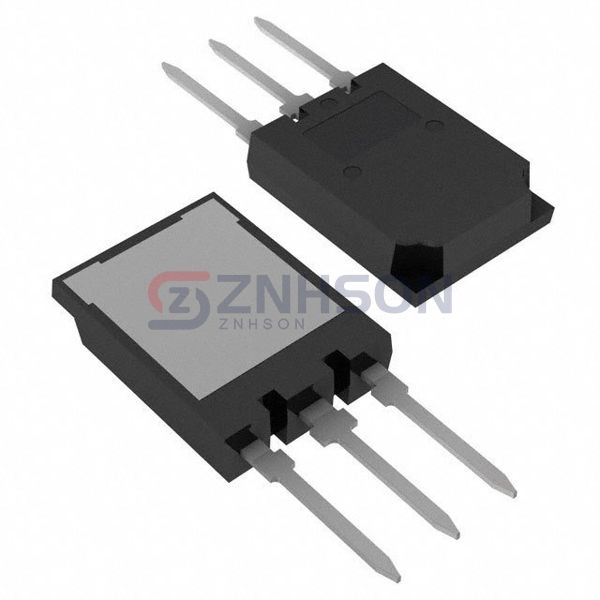

IRG7PSH54K10DPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 120A 520W TO274AA
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance IRG7PSH54K10DPBF Single IGBTs from Infineon Technologies, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, IRG7PSH54K10DPBF ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 200 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 50A
- Power - Max: 520 W
- Switching Energy: 4.8mJ (on), 2.8mJ (off)
- Input Type: Standard
- Gate Charge: 435 nC
- Td (on/off) @ 25°C: 110ns/490ns
- Test Condition: 600V, 50A, 5Ohm, 15V
- Reverse Recovery Time (trr): 170 ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: SUPER-247™ (TO-274AA)
