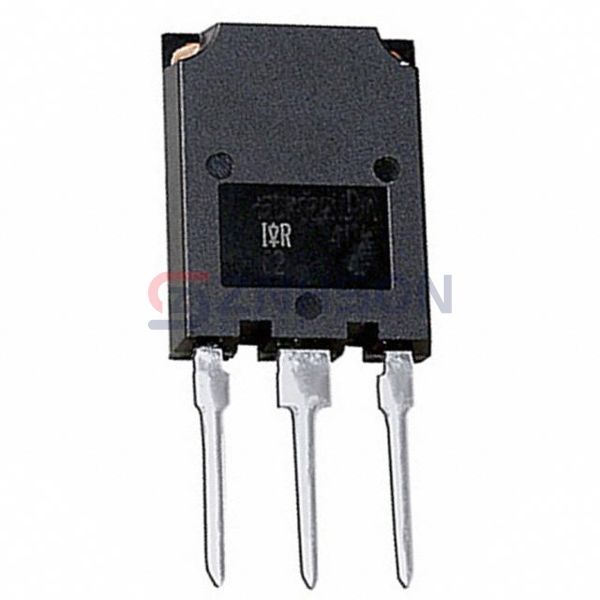

IRG4PSH71KDPBF
Infineon Technologies
Infineon Technologies
IGBT 1200V 78A SUPER247
$0.00
Available to order
Reference Price (USD)
1+
$14.93000
10+
$13.72400
100+
$11.59110
500+
$10.31114
1,000+
$9.48150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRG4PSH71KDPBF Single IGBT from Infineon Technologies redefines reliability in power electronics. Tailored for renewable energy, telecom, and defense applications, it offers ultra-low switching losses and high-frequency operation. With anti-parallel diodes and short-circuit ratings, it s built for safety and performance. Infineon Technologies stands behind every IRG4PSH71KDPBF with unmatched customer service. Start your order process by contacting our sales team today!
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 78 A
- Current - Collector Pulsed (Icm): 156 A
- Vce(on) (Max) @ Vge, Ic: 3.9V @ 15V, 42A
- Power - Max: 350 W
- Switching Energy: 5.68mJ (on), 3.23mJ (off)
- Input Type: Standard
- Gate Charge: 410 nC
- Td (on/off) @ 25°C: 67ns/230ns
- Test Condition: 800V, 42A, 5Ohm, 15V
- Reverse Recovery Time (trr): 107 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
