STGWA15S120DF3
STMicroelectronics

STMicroelectronics
IGBT 1200V 15A TO247-3L
$0.00
Available to order
Reference Price (USD)
1+
$7.80000
30+
$6.79333
120+
$5.97108
510+
$5.27075
1,020+
$4.66175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power electronics with STGWA15S120DF3 Single IGBTs by STMicroelectronics, engineered for precision and durability. Perfect for inverters, welding equipment, and automotive applications, these transistors provide fast switching speeds and excellent thermal stability. Key features include high voltage tolerance, low power loss, and compact design. Trust STMicroelectronics for top-quality components that meet global standards. Request a quote now to learn more about how STGWA15S120DF3 can enhance your projects.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 2.05V @ 15V, 15A
- Power - Max: 259 W
- Switching Energy: 540µJ (on), 1.38mJ (off)
- Input Type: Standard
- Gate Charge: 53 nC
- Td (on/off) @ 25°C: 23ns/140ns
- Test Condition: 600V, 15A, 22Ohm, 15V
- Reverse Recovery Time (trr): 270 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole

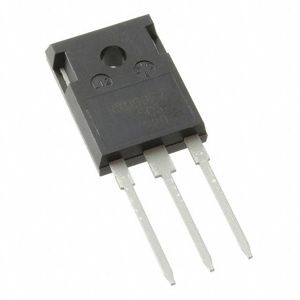

- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
