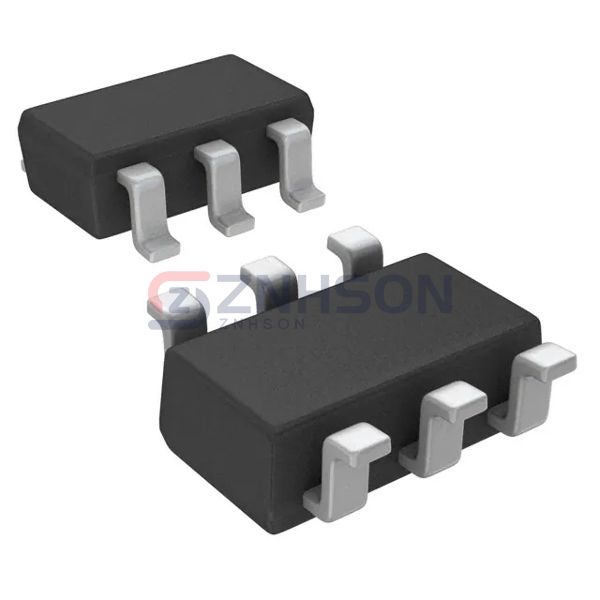

IRF5803
Infineon Technologies
Infineon Technologies
MOSFET P-CH 40V 3.4A MICRO6
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies presents IRF5803, a high-performance Transistors - FETs, MOSFETs - Single in the Discrete Semiconductor Products category. Designed for efficiency, this component features minimal conduction losses and superior thermal performance, making it ideal for high-frequency applications. From industrial automation to smart home devices, IRF5803 delivers unmatched reliability. Get in touch today for technical specifications and purchasing options!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 3.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 112mOhm @ 3.4A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 37 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1110 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2W (Ta)
- Operating Temperature: -
- Mounting Type: Surface Mount
- Supplier Device Package: Micro6™(TSOP-6)
- Package / Case: SOT-23-6 Thin, TSOT-23-6
