FGH60N60SFDTU-F085
onsemi
onsemi
IGBT FIELD STOP 600V 120A TO247
$0.00
Available to order
Reference Price (USD)
1+
$6.91000
10+
$6.26900
450+
$5.00738
900+
$4.58676
1,350+
$4.02593
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FGH60N60SFDTU-F085 Single IGBT by onsemi sets the standard for power semiconductor excellence. Designed for applications like electric vehicles and industrial machinery, it offers high current density and minimal thermal resistance. Key benefits include easy integration, superior durability, and compliance with international certifications. Partner with onsemi for cutting-edge solutions tailored to your needs. Contact us now to discuss specifications and delivery options!
Specifications
- Product Status: Obsolete
- IGBT Type: Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 120 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.9V @ 15V, 60A
- Power - Max: 378 W
- Switching Energy: 1.97mJ (on), 570µJ (off)
- Input Type: Standard
- Gate Charge: 188 nC
- Td (on/off) @ 25°C: 26ns/134ns
- Test Condition: 400V, 60A, 5Ohm, 15V
- Reverse Recovery Time (trr): 55 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Infineon Technologies
IRG8P45N65UD1PBF
Infineon Technologies
IRG7PH46UPBF
Fairchild Semiconductor
SGR20N40LTM
Renesas Electronics America Inc
RJP60F0DPE-00#J3
Infineon Technologies
AUIRGU4045D
Infineon Technologies
IKW75N60TXK
Infineon Technologies
IRGP20B120U-EP
onsemi

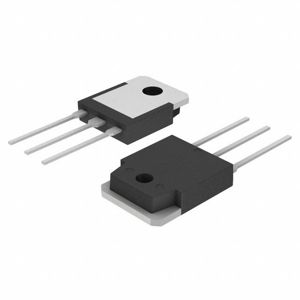

SGH15N60RUFDTU
