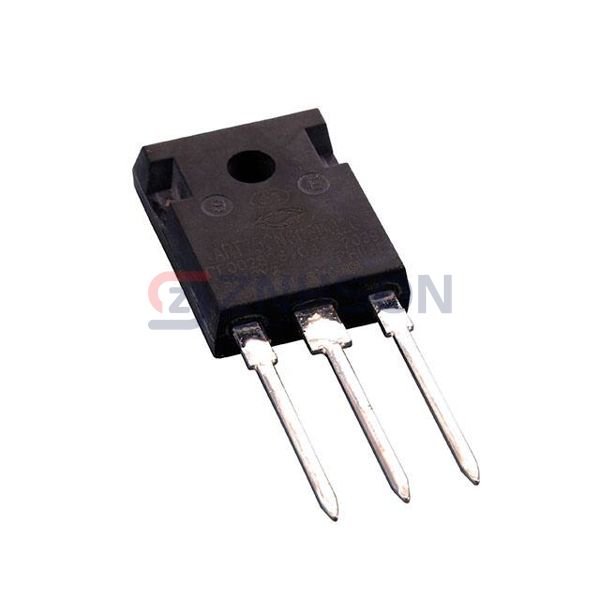

APT75GN60BDQ2G
Microchip Technology
Microchip Technology
IGBT FIELDSTOP SINGLE 600V 75A T
$10.12
Available to order
Reference Price (USD)
1+
$10.12000
500+
$10.0188
1000+
$9.9176
1500+
$9.8164
2000+
$9.7152
2500+
$9.614
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance APT75GN60BDQ2G Single IGBTs from Microchip Technology, designed for efficient power management in various industrial applications. These transistors offer superior switching capabilities and thermal performance, making them ideal for motor drives, renewable energy systems, and power supplies. Features include low saturation voltage, high current capacity, and robust construction. Whether you're upgrading existing systems or designing new solutions, APT75GN60BDQ2G ensures reliability and efficiency. Contact us today for pricing and technical support!
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 155 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 1.85V @ 15V, 75A
- Power - Max: 536 W
- Switching Energy: 2.5mJ (on), 2.14mJ (off)
- Input Type: Standard
- Gate Charge: 485 nC
- Td (on/off) @ 25°C: 47ns/385ns
- Test Condition: 400V, 75A, 1Ohm, 15V
- Reverse Recovery Time (trr): 25 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
