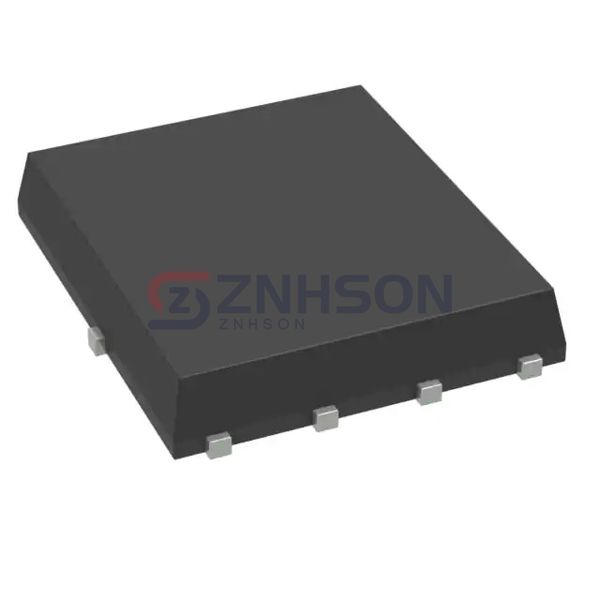

FDMS0309AS_SN00347
onsemi
onsemi
MOSFET N-CH 30V 21A/49A 8PQFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with FDMS0309AS_SN00347, a premium Transistors - FETs, MOSFETs - Single from onsemi. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust FDMS0309AS_SN00347 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 49A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 3.5mOhm @ 21A, 10V
- Vgs(th) (Max) @ Id: 3V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 47 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3000 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 50W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Vishay Siliconix
SUP85N04-03-E3
Toshiba Semiconductor and Storage
2SK2916(F)
Alpha & Omega Semiconductor Inc.
AO4722
NXP USA Inc.
PMDPB30XN/S711115
Fairchild Semiconductor

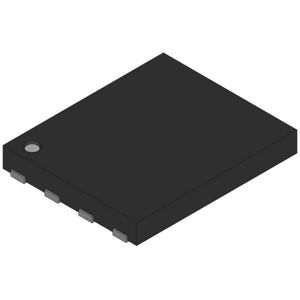

FDMC2512SDC
Vishay Siliconix
SUM09N20-270-E3
Infineon Technologies

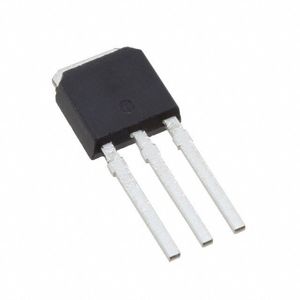

IRLU014NPBF
IXYS

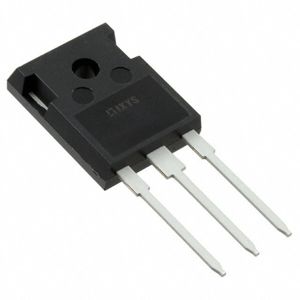

IXFH58N20
NXP USA Inc.

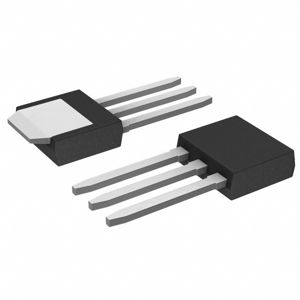

PHU77NQ03T,127
