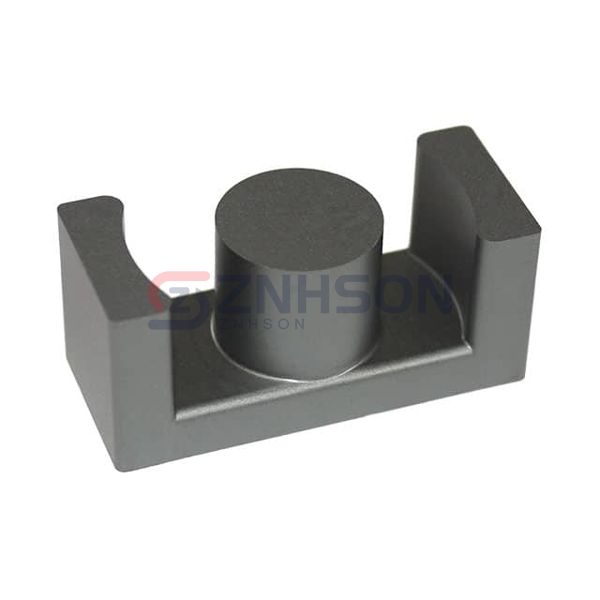

ETD59/31/22-3C94
Ferroxcube
Ferroxcube
FERRITE CORE
$6.70
Available to order
Reference Price (USD)
1+
$4.94000
10+
$4.20700
25+
$3.20080
50+
$3.10940
100+
$2.74360
250+
$2.56068
500+
$2.37780
1,000+
$2.28634
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium Ferroxcube ETD59/31/22-3C94 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: ETD
- Supplier Device Package: ETD 59 x 31 x 22
- Material: 3C94
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -
- Gap: -
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: -
- Effective Length (le) mm: -
- Effective Area (Ae) mm²: -
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: -
- Finish: Uncoated
- Height: 1.220" (31.00mm)
- Length: 2.354" (59.80mm)
- Width: 0.852" (21.65mm)
