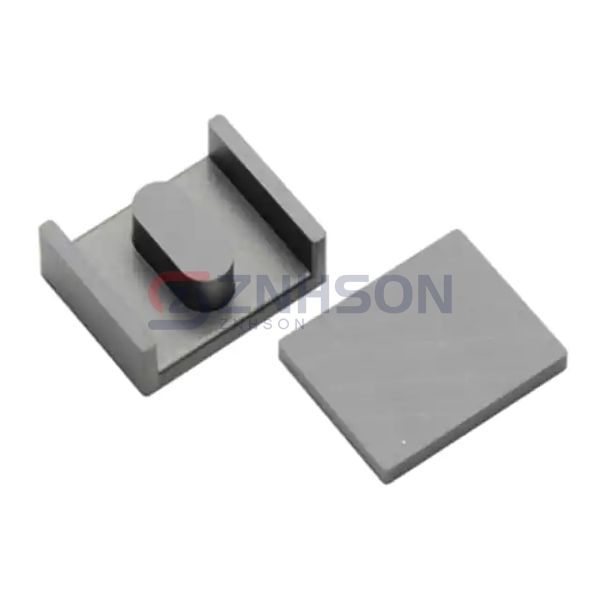

PC95ELT15.5X5.8-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 3.68UH 1SET
$1.55
Available to order
Reference Price (USD)
1+
$1.48000
10+
$1.27500
25+
$0.96920
50+
$0.91800
100+
$0.81600
450+
$0.76500
900+
$0.71400
1,350+
$0.65535
5,400+
$0.63750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium TDK Corporation PC95ELT15.5X5.8-Z Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 15.5 x 5.8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 3.68 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.6
- Effective Length (le) mm: 32.9
- Effective Area (Ae) mm²: 19.6
- Minimum Core Cross Section (Amin) mm²: 31.9
- Effective Magnetic Volume (Ve) mm³: 646
- Finish: Uncoated
- Height: 0.174" (4.42mm)
- Length: 0.610" (15.50mm)
- Width: 0.488" (12.40mm)
