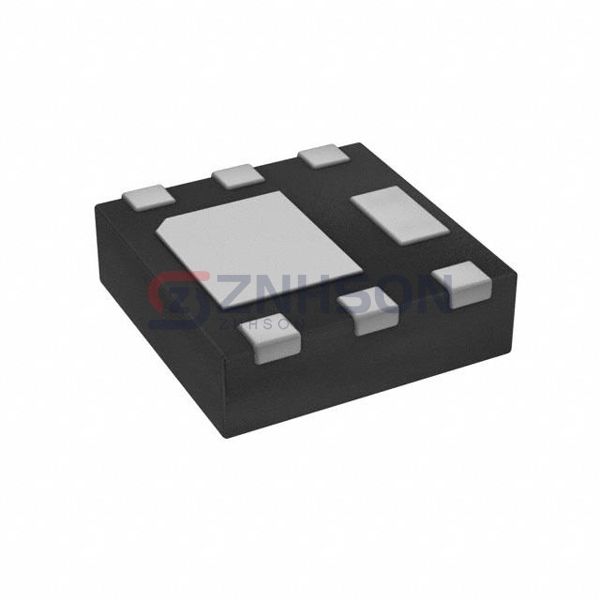

DMP1022UFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 12V 9.5A 6UDFN
$0.57
Available to order
Reference Price (USD)
1+
$0.57000
500+
$0.5643
1000+
$0.5586
1500+
$0.5529
2000+
$0.5472
2500+
$0.5415
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For cutting-edge Transistors - FETs, MOSFETs - Single solutions, choose DMP1022UFDF-7 by Diodes Incorporated. A key player in Discrete Semiconductor Products, this MOSFET boasts low RDS(on), high current capacity, and excellent switching characteristics. Its applications span across telecom infrastructure, medical devices, and consumer electronics. Elevate your designs with DMP1022UFDF-7 inquire now for more details!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 9.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 15.3mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 800mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 48.3 nC @ 8 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 2712 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 730mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
Related Products
Infineon Technologies
IRF1407STRLPBF
IXYS
IXTT88N30P
Infineon Technologies
IPB100N04S204ATMA4
Toshiba Semiconductor and Storage
TK12A45D(STA4,Q,M)
onsemi
NTD5N50
Panjit International Inc.

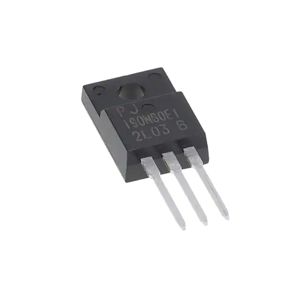

PJMF190N60E1_T0_00001
onsemi
FCH22N60N
Vishay Siliconix

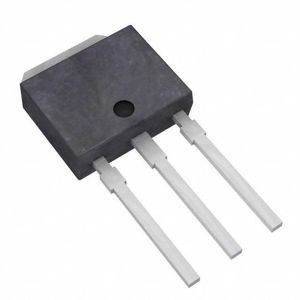

SIHU7N60E-E3
