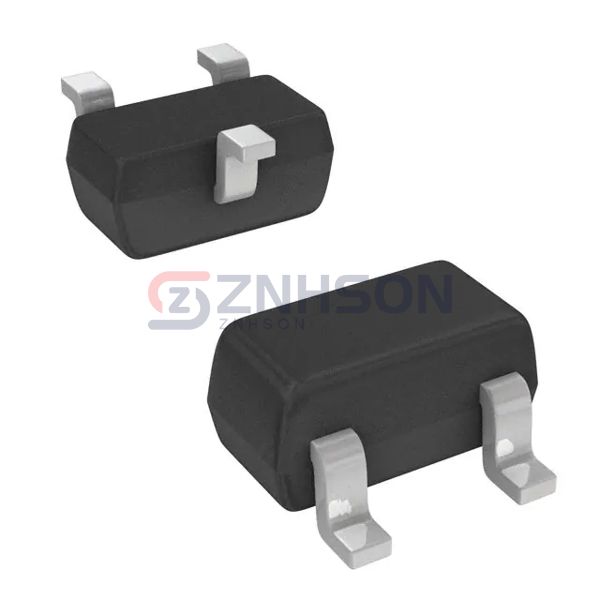

DMN313DLT-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 30V 270MA SOT523
$0.33
Available to order
Reference Price (USD)
3,000+
$0.06006
6,000+
$0.05280
15,000+
$0.04554
30,000+
$0.04312
75,000+
$0.04070
150,000+
$0.03586
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with DMN313DLT-7, a premium Transistors - FETs, MOSFETs - Single from Diodes Incorporated. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust DMN313DLT-7 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 270mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 2Ohm @ 10mA, 4V
- Vgs(th) (Max) @ Id: 1.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.5 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 36.3 pF @ 5 V
- FET Feature: -
- Power Dissipation (Max): 280mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-523
- Package / Case: SOT-523
Related Products
Alpha & Omega Semiconductor Inc.
AOTF3N90
STMicroelectronics
STD2NC45-1
IXYS
IXFB70N60Q2
Infineon Technologies
IPB80N04S3H4ATMA1
Infineon Technologies
BSC026N08NS5ATMA1
Fairchild Semiconductor
FDP12N50
Vishay Siliconix
SIHG47N60AE-GE3
Renesas Electronics America Inc
NP82N04MUG-S18-AY

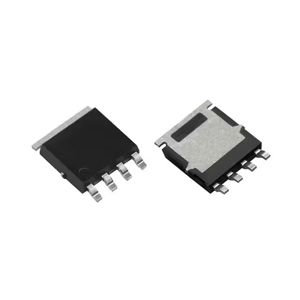

Vishay Siliconix
