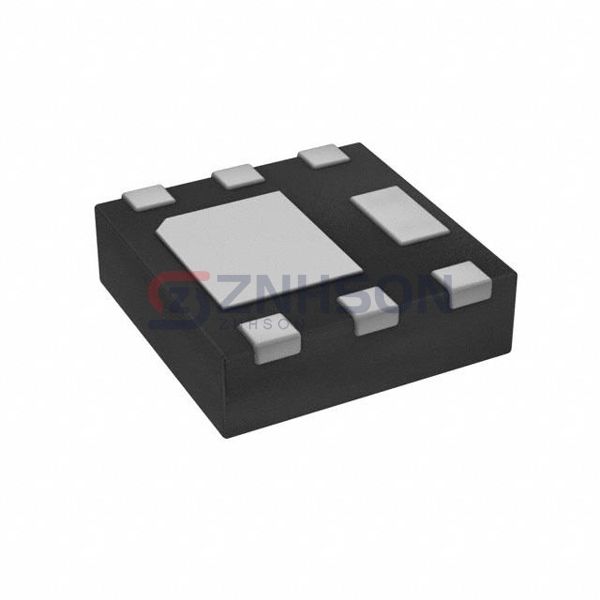

DMN2024UFDF-7
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 7.1A 6UDFN
$0.13
Available to order
Reference Price (USD)
3,000+
$0.13682
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover DMN2024UFDF-7, a versatile Transistors - FETs, MOSFETs - Single solution from Diodes Incorporated, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 7.1A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.9 nC @ 10 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 647 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 960mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: U-DFN2020-6 (Type F)
- Package / Case: 6-UDFN Exposed Pad
Related Products
Rohm Semiconductor
RQ5H030TNTL
Vishay Siliconix
SQM40061EL_GE3
onsemi
NVD4806NT4G-VF01
Vishay Siliconix
SIRA12DP-T1-GE3
onsemi
NTTFS5C670NLTWG
NXP USA Inc.

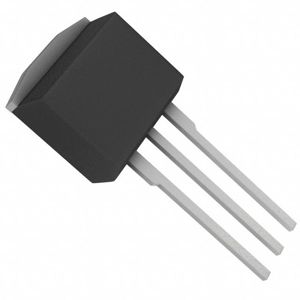

BUK9E8R5-40E,127
Vishay Siliconix
SQM40N10-30_GE3
Toshiba Semiconductor and Storage

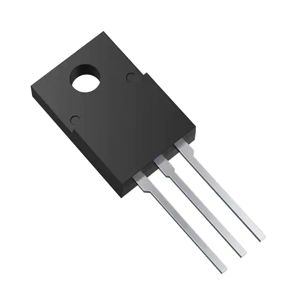

TK40A10N1,S4X
Nexperia USA Inc.

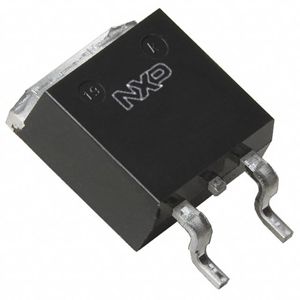

PSMN057-200B,118
