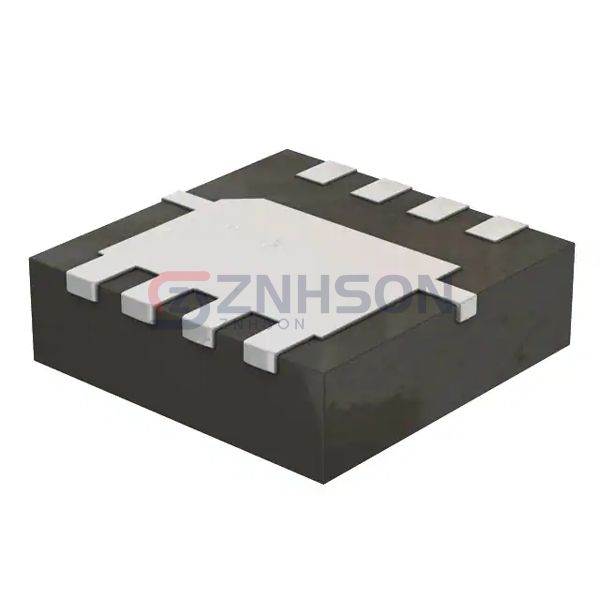

CSD25402Q3A
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 76A 8VSON
$0.98
Available to order
Reference Price (USD)
2,500+
$0.37265
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD25402Q3A from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD25402Q3A delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 76A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 8.9mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.7 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1790 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 69W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
