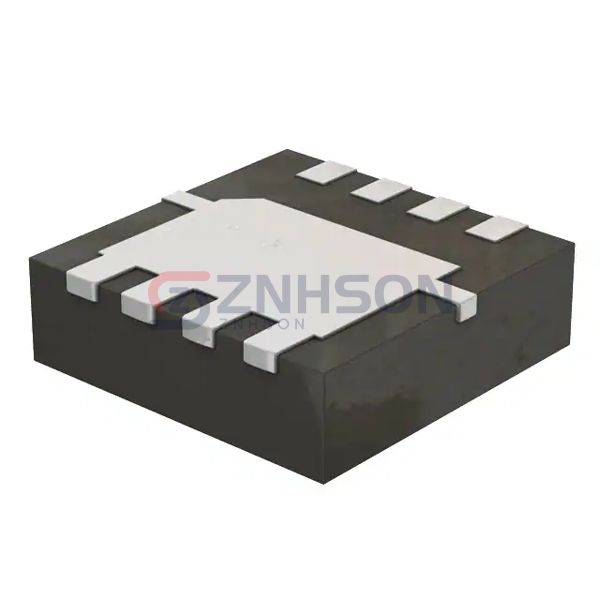

CSD25401Q3
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 14A/60A 8VSON
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the power of CSD25401Q3, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. Part of the Discrete Semiconductor Products family, this MOSFET is tailored for high-efficiency power conversion and signal amplification. With its rugged construction and advanced technology, CSD25401Q3 is suited for harsh environments and high-demand applications. Request a quote now to secure this essential component for your projects!
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 11.7mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 12.3 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1400 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (3.3x3.3)
- Package / Case: 8-PowerTDFN
Related Products
Infineon Technologies
IRFR3708PBF
Infineon Technologies
IRFR3706TRLPBF
Infineon Technologies
IRF3711ZSTRLPBF
STMicroelectronics
STF8NM60ND
Rohm Semiconductor
ZDX130N50
onsemi
NVMFS5C645NLT3G
Vishay Siliconix
2N7002-E3
Rohm Semiconductor
ES6U42T2R
onsemi

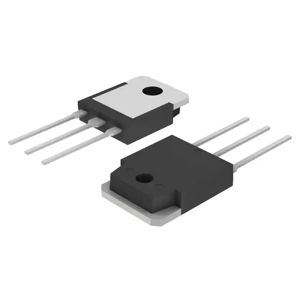

FQA28N15_F109
