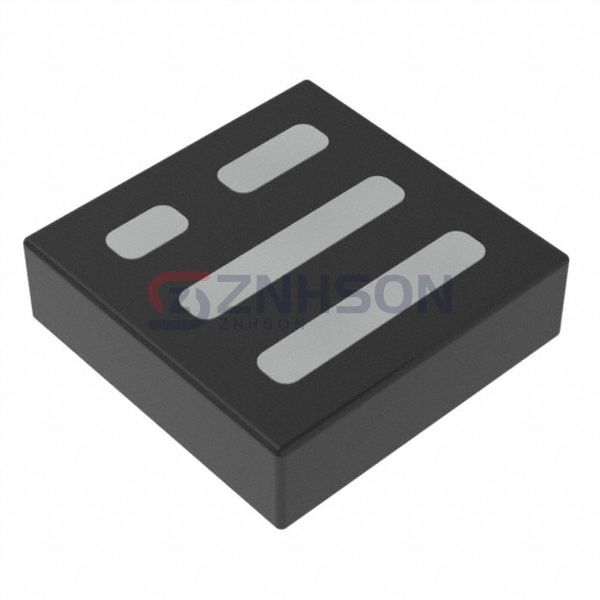

CSD22205LT
Texas Instruments
Texas Instruments
MOSFET P-CH 8V 7.4A 4PICOSTAR
$1.15
Available to order
Reference Price (USD)
250+
$0.35360
500+
$0.29920
750+
$0.25840
1,250+
$0.23120
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with CSD22205LT by Texas Instruments, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, CSD22205LT ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 8 V
- Current - Continuous Drain (Id) @ 25°C: 7.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 9.9mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id: 1.05V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.5 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 1390 pF @ 4 V
- FET Feature: -
- Power Dissipation (Max): 600mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 4-PICOSTAR
- Package / Case: 4-XFLGA
