CSD18533Q5AT
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 17A/100A 8VSON
$1.69
Available to order
Reference Price (USD)
250+
$0.97460
500+
$0.86386
750+
$0.75753
1,250+
$0.68666
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover CSD18533Q5AT, a versatile Transistors - FETs, MOSFETs - Single solution from Texas Instruments, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 17A (Ta), 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.9mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 36 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2750 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 3.2W (Ta), 116W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
STMicroelectronics
STB13NM60N
Nexperia USA Inc.
PMPB16EPX
Infineon Technologies
IPP139N08N3G
onsemi
NTTFS4929NTAG
Vishay Siliconix
SUM50010E-GE3
Vishay Siliconix
SIHB22N60E-E3
Infineon Technologies
AUIRL3705ZS
IXYS
IXFT24N80P
Vishay Siliconix

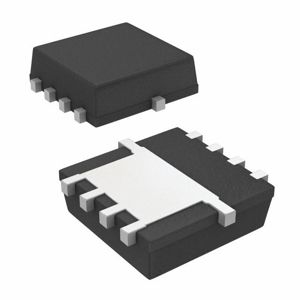

SI7812DN-T1-E3
