CSD18509Q5BT
Texas Instruments
Texas Instruments
MOSFET N-CH 40V 100A 8VSON
$2.90
Available to order
Reference Price (USD)
1+
$2.90000
500+
$2.871
1000+
$2.842
1500+
$2.813
2000+
$2.784
2500+
$2.755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with CSD18509Q5BT, a reliable Transistors - FETs, MOSFETs - Single by Texas Instruments. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, CSD18509Q5BT meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.2mOhm @ 32A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 195 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13900 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 195W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
onsemi
FQT4N20LTF
Infineon Technologies
IPT004N03LATMA1
Fairchild Semiconductor
HUF76013P3
onsemi
FCH043N60
Infineon Technologies
BSP92PL6327HTSA1
Infineon Technologies
AUIRF7769L2TR
Fairchild Semiconductor
HUFA75321D3ST
STMicroelectronics

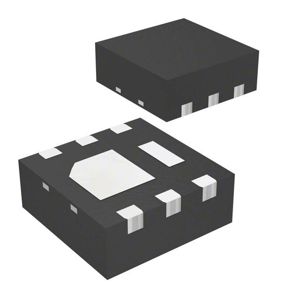

STL4P3LLH6
onsemi

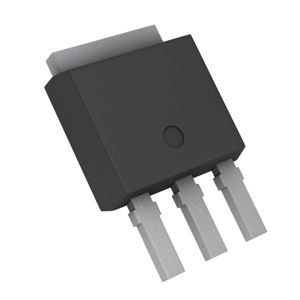

NTD4854N-35G

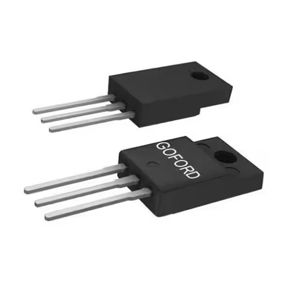

Goford Semiconductor
