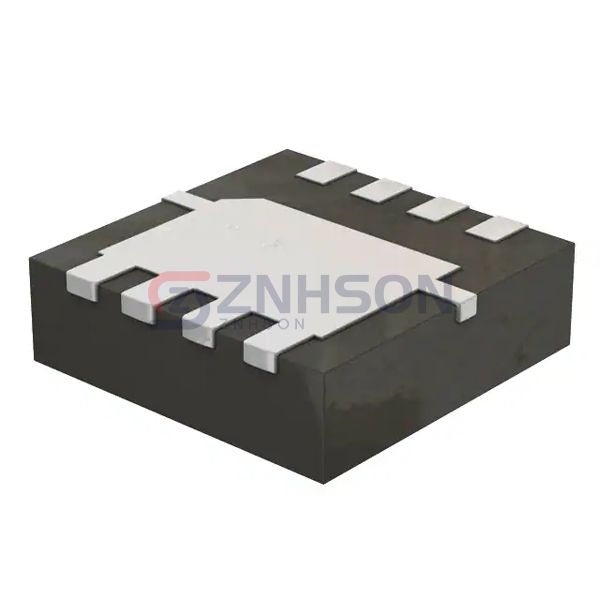

CSD16323Q3
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 21A/60A 8VSON
$1.29
Available to order
Reference Price (USD)
2,500+
$0.44800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-performance CSD16323Q3 from Texas Instruments, a leading solution in the Discrete Semiconductor Products category. Our Transistors - FETs, MOSFETs - Single are designed for efficiency and reliability, making them ideal for various electronic applications. These components feature low on-resistance, fast switching speeds, and excellent thermal performance, ensuring optimal functionality in power management and amplification circuits. Commonly used in automotive, industrial, and consumer electronics, CSD16323Q3 delivers consistent performance under demanding conditions. Interested in learning more? Contact us today for a detailed quote and technical support!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 4.5mOhm @ 24A, 8V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 8.4 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (3.3x3.3)
- Package / Case: 8-PowerTDFN
Related Products
Texas Instruments
CSD16407Q5
Diodes Incorporated
DMN313DLT-7
Alpha & Omega Semiconductor Inc.
AOTF3N90
STMicroelectronics
STD2NC45-1
IXYS
IXFB70N60Q2
Infineon Technologies
IPB80N04S3H4ATMA1
Infineon Technologies
BSC026N08NS5ATMA1
Fairchild Semiconductor
FDP12N50
Vishay Siliconix

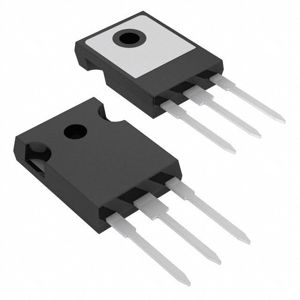

SIHG47N60AE-GE3
