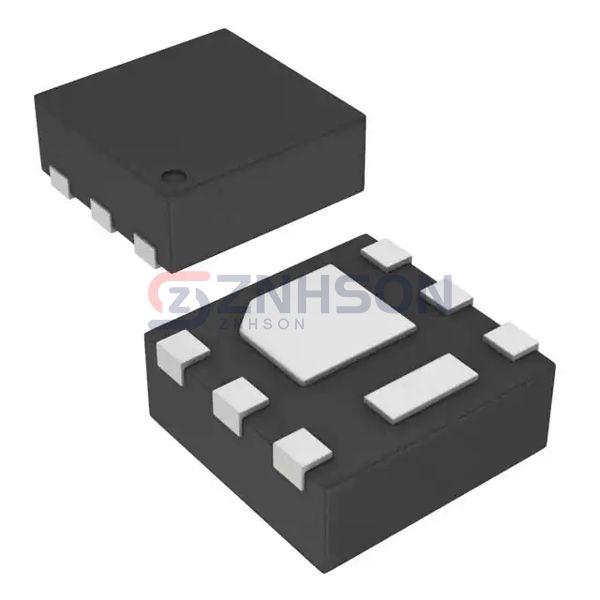

CSD16301Q2
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 5A 6SON
$0.65
Available to order
Reference Price (USD)
3,000+
$0.18600
6,000+
$0.17400
15,000+
$0.16800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience the power of CSD16301Q2, a premium Transistors - FETs, MOSFETs - Single from Texas Instruments. Part of the Discrete Semiconductor Products family, this MOSFET is tailored for high-efficiency power conversion and signal amplification. With its rugged construction and advanced technology, CSD16301Q2 is suited for harsh environments and high-demand applications. Request a quote now to secure this essential component for your projects!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 24mOhm @ 4A, 8V
- Vgs(th) (Max) @ Id: 1.55V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 2.8 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 2.3W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SON
- Package / Case: 6-SMD, Flat Leads
