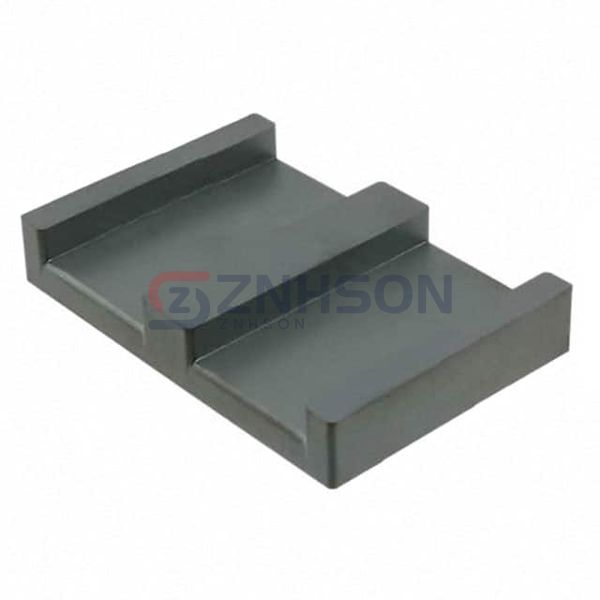

B66291P0000X149
EPCOS - TDK Electronics
EPCOS - TDK Electronics
FERRITE CORE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B66291P0000X149 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Obsolete
- Core Type: I
- Supplier Device Package: I 43 x 4 x 28
- Material: N49
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 1030
- Initial Permeability (µi): 1500
- Core Factor (ΣI/A) mm-1: 0.22
- Effective Length (le) mm: 50.4
- Effective Area (Ae) mm²: 229
- Minimum Core Cross Section (Amin) mm²: 225
- Effective Magnetic Volume (Ve) mm³: 11500
- Finish: Uncoated
- Height: 0.161" (4.10mm)
- Length: 1.700" (43.20mm)
- Width: 1.098" (27.90mm)
