B65805J0000Y066
EPCOS - TDK Electronics
EPCOS - TDK Electronics

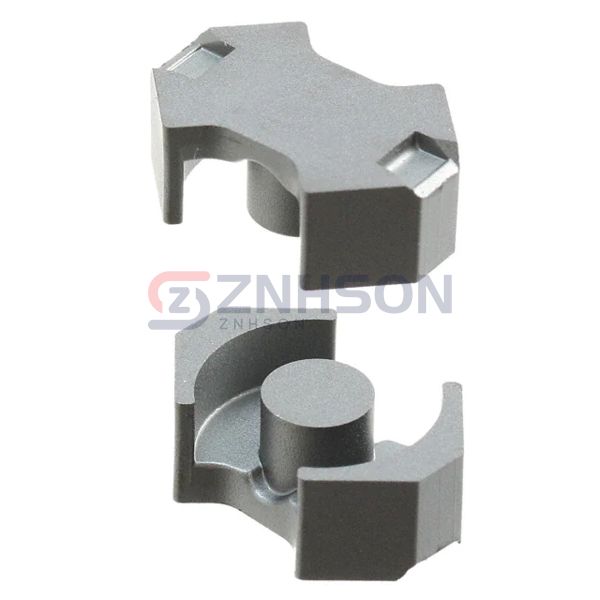

FERRITE CORE RM 9.6UH T66 2PCS
$0.00
Available to order
Reference Price (USD)
1+
$2.34000
10+
$2.01900
25+
$1.53480
50+
$1.45380
100+
$1.29230
250+
$1.21156
500+
$1.13078
1,000+
$1.03789
5,000+
$1.00963
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with EPCOS - TDK Electronics B65805J0000Y066 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Obsolete
- Core Type: RM
- Supplier Device Package: RM 5
- Material: T66
- Diameter: -
- Inductance Factor (Al): 9.6 µH
- Tolerance: -30%, +40%
- Gap: Ungapped
- Effective Permeability (µe): 7090
- Initial Permeability (µi): 13000
- Core Factor (ΣI/A) mm-1: 0.93
- Effective Length (le) mm: 22.1
- Effective Area (Ae) mm²: 23.8
- Minimum Core Cross Section (Amin) mm²: 18
- Effective Magnetic Volume (Ve) mm³: 526
- Finish: Uncoated
- Height: 0.207" (5.25mm)
- Length: 0.575" (14.60mm)
- Width: 0.268" (6.80mm)
