B65805J0315A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

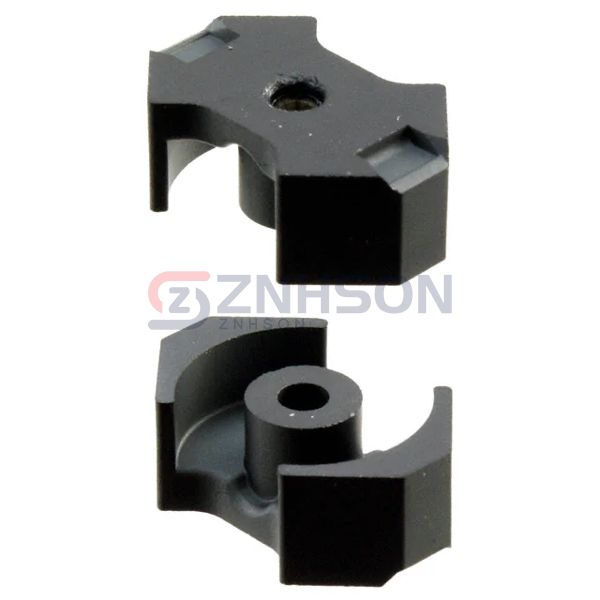

FERRITE CORE RM 315NH N48 2PCS
$1.26
Available to order
Reference Price (USD)
1,000+
$1.15522
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium EPCOS - TDK Electronics B65805J0315A048 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: RM
- Supplier Device Package: RM 5
- Material: N48
- Diameter: -
- Inductance Factor (Al): 315 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 251
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.93
- Effective Length (le) mm: 22.1
- Effective Area (Ae) mm²: 23.8
- Minimum Core Cross Section (Amin) mm²: 18
- Effective Magnetic Volume (Ve) mm³: 526
- Finish: Uncoated
- Height: 0.207" (5.25mm)
- Length: 0.575" (14.60mm)
- Width: 0.268" (6.80mm)
