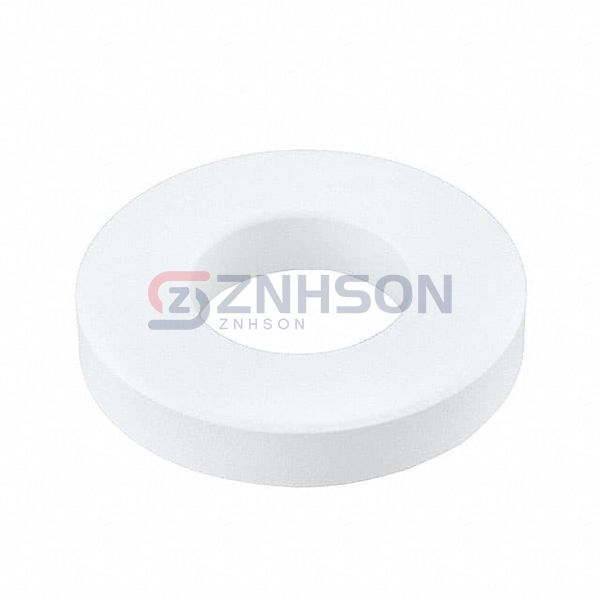

TX80/40/15-3C94
Ferroxcube
Ferroxcube
FERRITE CORES ROUND
$24.62
Available to order
Reference Price (USD)
1+
$16.59000
10+
$14.93400
25+
$11.28360
50+
$10.95160
100+
$9.62410
250+
$8.82764
500+
$8.42940
1,000+
$8.29665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with Ferroxcube TX80/40/15-3C94 Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: Toroid
- Supplier Device Package: TX 80 x 40 x 15
- Material: 3C94
- Diameter: 3.268" (83.00mm)
- Inductance Factor (Al): -
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 2300
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.604
- Effective Length (le) mm: 174
- Effective Area (Ae) mm²: 288
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 50200
- Finish: Epoxy
- Height: 0.626" (15.90mm)
- Length: -
- Width: -
