B65701T0630A048
EPCOS - TDK Electronics
EPCOS - TDK Electronics

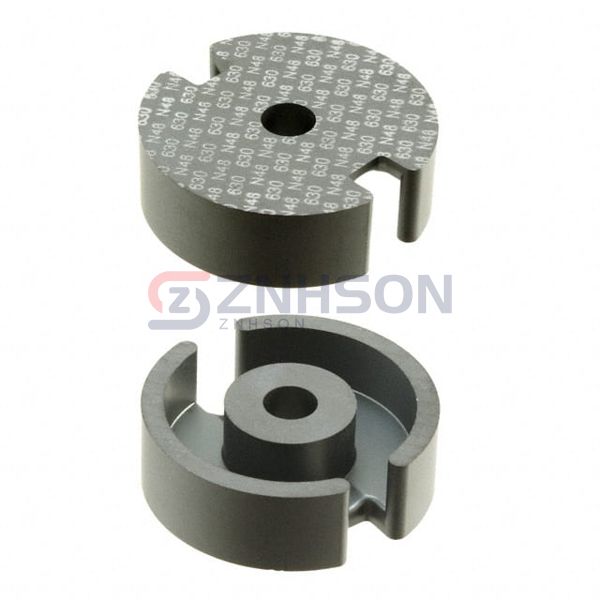

FERRITE CORE P 630NH N48 2PCS
$13.11
Available to order
Reference Price (USD)
1+
$9.13000
10+
$7.77900
25+
$5.91920
50+
$5.75000
100+
$5.07350
250+
$4.73524
500+
$4.39700
1,000+
$4.22788
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with EPCOS - TDK Electronics B65701T0630A048 Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 30 x 19
- Material: N48
- Diameter: 1.200" (30.50mm)
- Inductance Factor (Al): 630 nH
- Tolerance: ±3%
- Gap: Gapped
- Effective Permeability (µe): 166
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.33
- Effective Length (le) mm: 45
- Effective Area (Ae) mm²: 136
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6120
- Finish: Uncoated
- Height: 0.374" (9.50mm)
- Length: -
- Width: -
