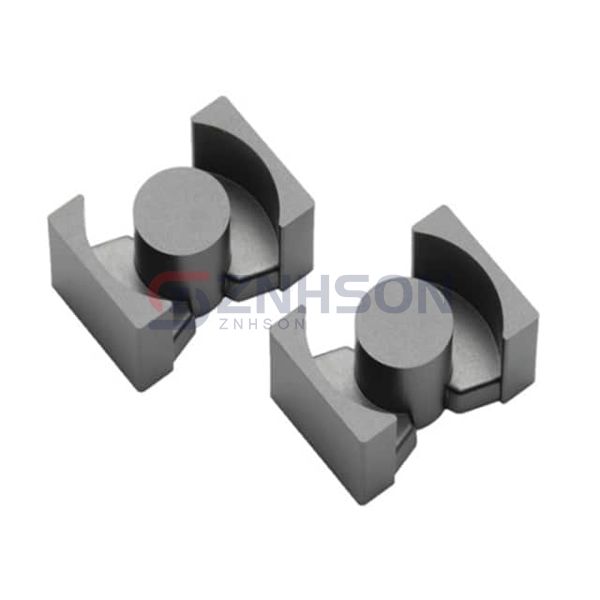

PC95PQ50/50Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 9.7UH 2PC SET
$34.64
Available to order
Reference Price (USD)
1+
$32.99000
10+
$29.51600
30+
$23.26567
60+
$22.57133
120+
$19.79325
270+
$18.26533
510+
$17.50139
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in reliability with TDK Corporation PC95PQ50/50Z-12 Ferrite Cores, tailored for high-efficiency power transfer and noise reduction. These cores are ideal for use in resonant circuits, pulse transformers, and EMI filters. Their high saturation flux density and minimal eddy current loss make them a top choice for power electronics. From industrial machinery to consumer gadgets, our Ferrite Cores ensure peak performance. Contact us for a detailed quote and technical support!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 50 x 50
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 9.7 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.35
- Effective Length (le) mm: 113
- Effective Area (Ae) mm²: 328
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 37200
- Finish: Uncoated
- Height: 1.967" (49.95mm)
- Length: 1.969" (50.00mm)
- Width: 1.260" (32.00mm)
Related Products
TDK Corporation
HF60T22X10X14
EPCOS - TDK Electronics
B65811P0000R092
Ferroxcube
TX36/23/10-3E27
EPCOS - TDK Electronics
B66233Q0150K187
EPCOS - TDK Electronics
B65847A0000Y038
EPCOS - TDK Electronics
B66293K0000X187
EPCOS - TDK Electronics
B66363G0500X187
Ferroxcube

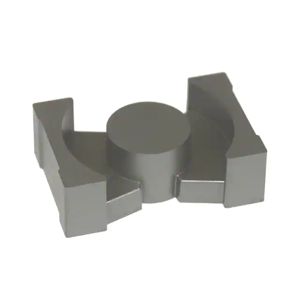

PQ32/35-3C95
Fair-Rite Products Corp.

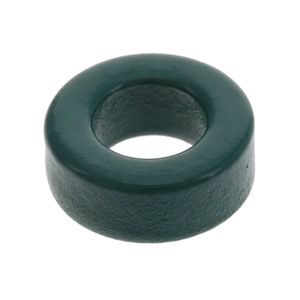

5943000321
