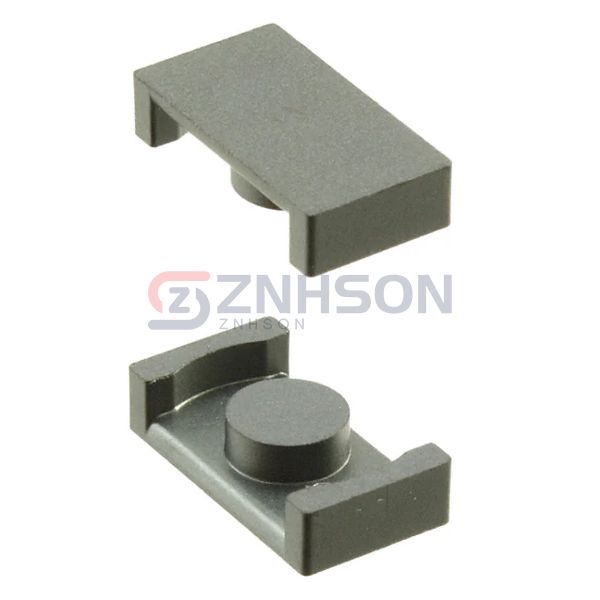

B65525J0000R608
EPCOS - TDK Electronics
EPCOS - TDK Electronics
ER11/5-PC200
$1.55
Available to order
Reference Price (USD)
1+
$0.93000
10+
$0.83600
25+
$0.61920
50+
$0.58820
100+
$0.52630
250+
$0.49536
500+
$0.46440
1,000+
$0.40248
5,000+
$0.38700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with EPCOS - TDK Electronics B65525J0000R608 Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 11 x 5
- Material: PC200
- Diameter: -
- Inductance Factor (Al): -
- Tolerance: -20%, +30%
- Gap: Ungapped
- Effective Permeability (µe): 580
- Initial Permeability (µi): 800
- Core Factor (ΣI/A) mm-1: 1.1
- Effective Length (le) mm: 14.1
- Effective Area (Ae) mm²: 12.4
- Minimum Core Cross Section (Amin) mm²: 10.3
- Effective Magnetic Volume (Ve) mm³: 174
- Finish: Uncoated
- Height: 0.197" (5.00mm)
- Length: 0.433" (11.00mm)
- Width: 0.236" (6.00mm)
