PC47EPC13-Z
TDK Corporation
TDK Corporation

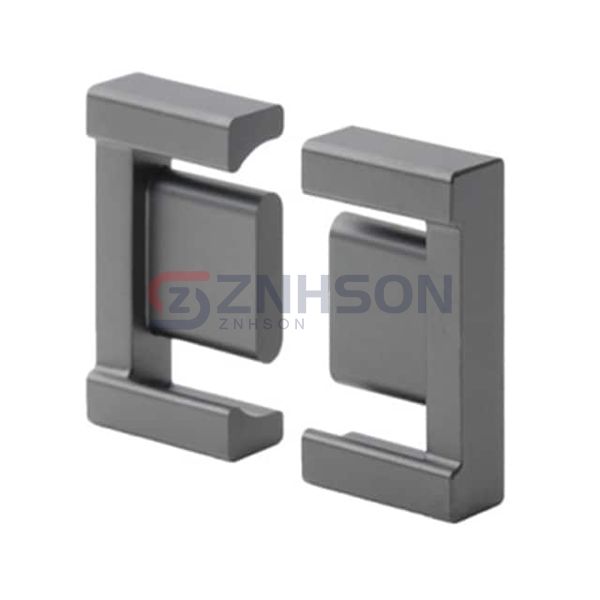

FERRITE CORE EPC 870NH 2PC SET
$0.80
Available to order
Reference Price (USD)
1+
$0.76000
10+
$0.64400
25+
$0.55200
50+
$0.49460
100+
$0.43700
250+
$0.39100
900+
$0.36800
1,800+
$0.31050
5,400+
$0.28750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in reliability with TDK Corporation PC47EPC13-Z Ferrite Cores, tailored for high-efficiency power transfer and noise reduction. These cores are ideal for use in resonant circuits, pulse transformers, and EMI filters. Their high saturation flux density and minimal eddy current loss make them a top choice for power electronics. From industrial machinery to consumer gadgets, our Ferrite Cores ensure peak performance. Contact us for a detailed quote and technical support!
Specifications
- Product Status: Active
- Core Type: EPC
- Supplier Device Package: EPC 13
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 870 nH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 2.45
- Effective Length (le) mm: 30.6
- Effective Area (Ae) mm²: 12.5
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 382
- Finish: Uncoated
- Height: 0.260" (6.60mm)
- Length: 0.522" (13.25mm)
- Width: 0.181" (4.60mm)
