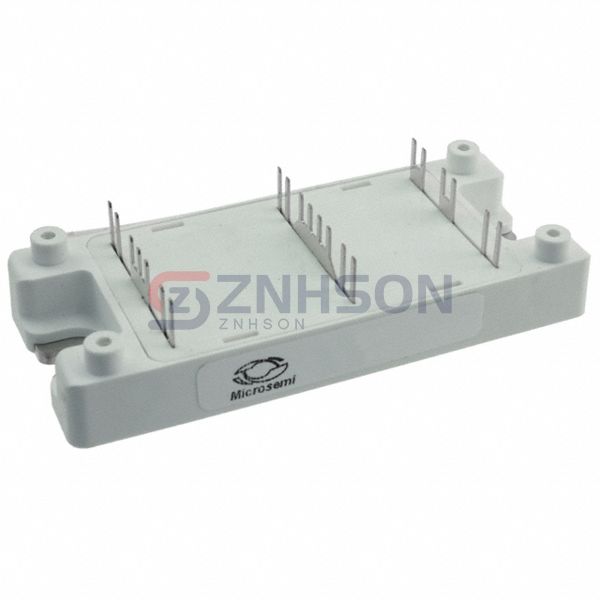

APTGF75DSK120TG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 100A 500W SP4
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your energy efficiency with Microchip Technology's APTGF75DSK120TG IGBT Module. This module offers excellent thermal conductivity and minimal power loss, ideal for HVAC systems, robotics, and power converters. Experience the reliability of Microchip Technology inquire today about bulk order discounts.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Dual, Common Source
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 100 A
- Power - Max: 500 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 75A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 5.1 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
Related Products
Infineon Technologies
6MS30017E43W34404NOSA1
Vishay General Semiconductor - Diodes Division
VS-CPV364M4UPBF
Microsemi Corporation
APTGV50H120T3G
Powerex Inc.
CM400DU-12NFH
Infineon Technologies
6MS10017E41W36460BOSA1
Infineon Technologies
FF600R12ME4B73BPSA1
Infineon Technologies
FS400R07A1E3H5BPSA1
Microsemi Corporation

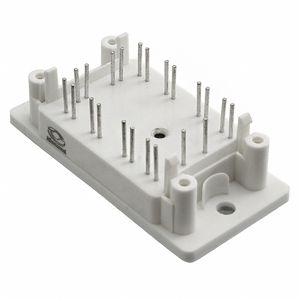

APTGT75H60T2G
SemiQ

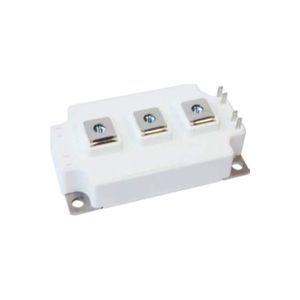

GSID200A120S3B1
