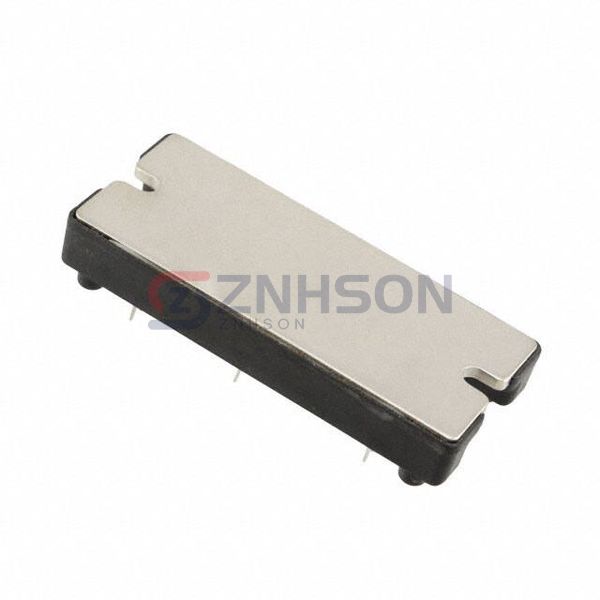

APTGF50H120TG
Microsemi Corporation
Microsemi Corporation
IGBT MODULE 1200V 75A 312W SP4
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve precision power control with Microsemi Corporation's APTGF50H120TG IGBT Module. Its rugged construction and high isolation voltage make it a top choice for marine propulsion and grid infrastructure. Features include solder-free assembly and RoHS compliance. Elevate your systems request a consultation today.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Full Bridge Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 75 A
- Power - Max: 312 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 50A
- Current - Collector Cutoff (Max): 250 µA
- Input Capacitance (Cies) @ Vce: 3.45 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
Related Products
Littelfuse Inc.
MG12300D-BN3MM
Powerex Inc.
CM150DU-24NFH
Microchip Technology
APTGF500U60D4G
Powerex Inc.
CM100DY-24A
IXYS
IXGN72N60A3
Littelfuse Inc.
MG1250S-BA1MM
Vishay General Semiconductor - Diodes Division

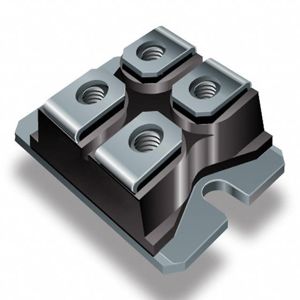

VS-GB55NA120UX
Powerex Inc.

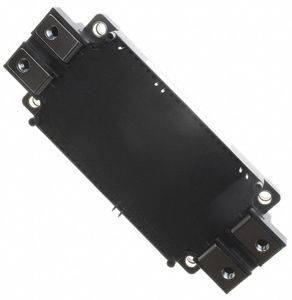

CM300DX-24A
SemiQ

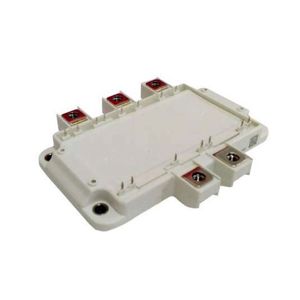

GSID100A120S5C1
