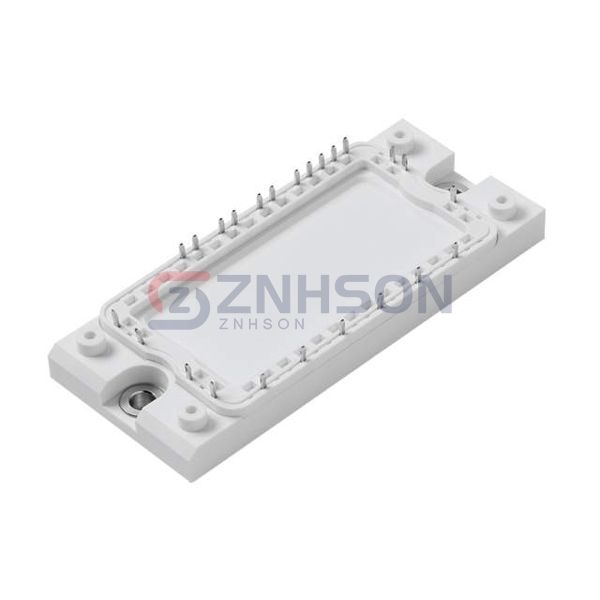

MG1275H-XN2MM
Littelfuse Inc.
Littelfuse Inc.
IGBT MOD 1200V 105A 348W
$0.00
Available to order
Reference Price (USD)
80+
$126.14550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your power electronics with MG1275H-XN2MM IGBT Modules by Littelfuse Inc.. Known for their durability and precision, these modules are perfect for applications like electric vehicles, welding equipment, and UPS systems. Features include low saturation voltage and high current capacity. Get the best in semiconductor solutions reach out for pricing and availability.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 105 A
- Power - Max: 348 W
- Vce(on) (Max) @ Vge, Ic: 1.7V @ 15V, 75A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 5.3 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
