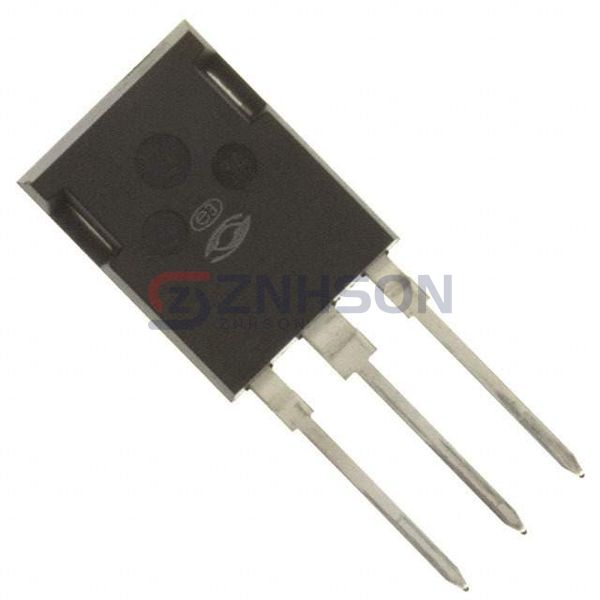

APT22F120B2
Microchip Technology
Microchip Technology
MOSFET N-CH 1200V 23A T-MAX
$36.46
Available to order
Reference Price (USD)
1+
$36.46500
500+
$36.10035
1000+
$35.7357
1500+
$35.37105
2000+
$35.0064
2500+
$34.64175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with APT22F120B2, a premium Transistors - FETs, MOSFETs - Single from Microchip Technology. As part of the Discrete Semiconductor Products lineup, this MOSFET excels in delivering high-speed switching and low power consumption. Its advanced design reduces heat generation and improves efficiency, suitable for power supplies, motor controls, and LED lighting. Trust APT22F120B2 for consistent quality and long-lasting performance. For bulk orders or custom specifications, reach out to our sales team today!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 23A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 700mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 5V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 260 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 8370 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1040W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: T-MAX™ [B2]
- Package / Case: TO-247-3 Variant
