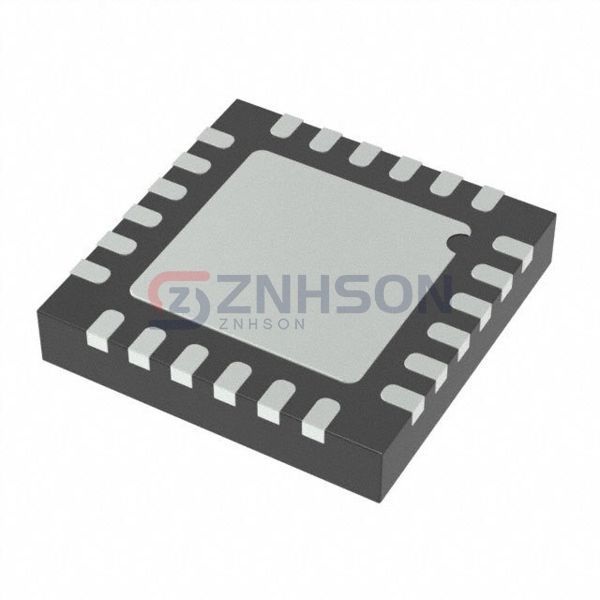

ADGS1212BCPZ-RL7
Analog Devices Inc.
Analog Devices Inc.
IC SWITCH SPST QUAD 24-LFCSP
$5.46
Available to order
Reference Price (USD)
1,500+
$4.04959
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your system with Analog Devices Inc. ADGS1212BCPZ-RL7 Interface ICs, featuring advanced Analog Switches, Multiplexers, and Demultiplexers for superior signal management. Engineered for durability and efficiency, these components are perfect for audio/video equipment, data acquisition, and medical devices. Enjoy minimal distortion and high-speed operation with our cutting-edge technology. Ready to enhance your design? Submit an inquiry now and our team will provide tailored recommendations to meet your specific needs.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 260Ohm, 625Ohm
- Channel-to-Channel Matching (ΔRon): 11Ohm, 27Ohm
- Voltage - Supply, Single (V+): 5V ~ 16.5V
- Voltage - Supply, Dual (V±): ±4.5V ~ 16.5V
- Switch Time (Ton, Toff) (Max): 490ns, 225ns
- -3db Bandwidth: 1GHz
- Charge Injection: 1pC
- Channel Capacitance (CS(off), CD(off)): 1.4pF, 1.5pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad, CSP
- Supplier Device Package: 24-LFCSP (4x4)
Related Products
Analog Devices Inc./Maxim Integrated
MAX14550AEETB+
Analog Devices Inc.
ADG608BRUZ
Analog Devices Inc.
ADG507AKNZ
Analog Devices Inc./Maxim Integrated
MAX308CPE
Analog Devices Inc./Maxim Integrated
DG445DY+T
Texas Instruments
MUX36S16IDWR
ADSANTEC

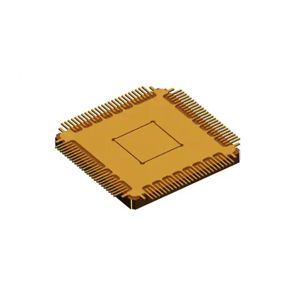

ASNT1011-KMA
NXP USA Inc.

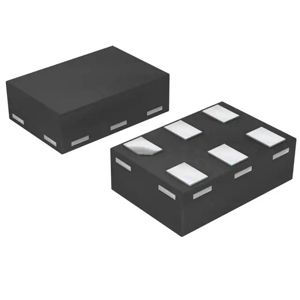

NX3L1G66GM,115
Texas Instruments

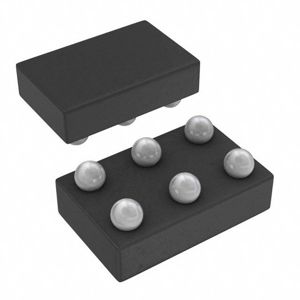

TS5A3159AYZPR
