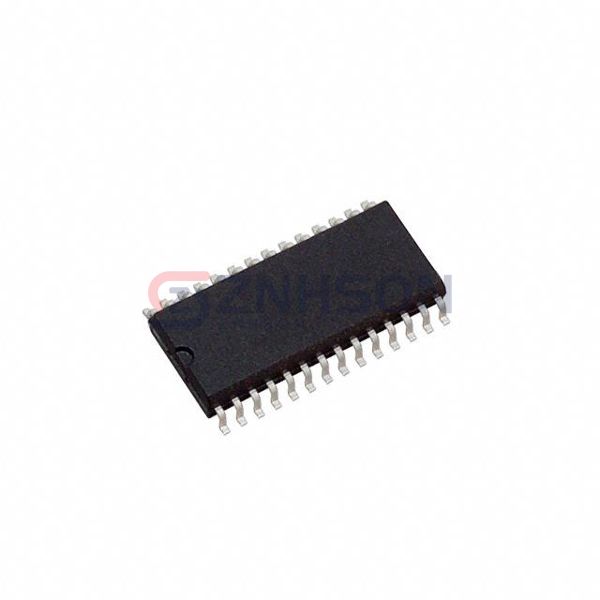

MUX36S16IDWR
Texas Instruments
Texas Instruments
IC SWITCH SINGLE 28SOIC
$6.58
Available to order
Reference Price (USD)
1,000+
$4.73985
2,000+
$4.56430
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The Texas Instruments MUX36S16IDWR series brings you high-performance Analog Switches, Multiplexers, and Demultiplexers for all your interface needs. Perfect for data loggers, medical imaging, and communication systems, these ICs ensure reliable operation under demanding conditions. Benefit from Texas Instruments's expertise in signal integrity and power efficiency. Reach out now to learn more and place your order with confidence.
Specifications
- Product Status: Active
- Switch Circuit: -
- Multiplexer/Demultiplexer Circuit: 16:1
- Number of Circuits: 1
- On-State Resistance (Max): 170Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 10V ~ 36V
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Switch Time (Ton, Toff) (Max): 136ns, 78ns
- -3db Bandwidth: -
- Charge Injection: 0.67pC
- Channel Capacitance (CS(off), CD(off)): 3pF, 12.2pF
- Current - Leakage (IS(off)) (Max): 40pA
- Crosstalk: -99db @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package: 28-SOIC
Related Products
ADSANTEC
ASNT1011-KMA
NXP USA Inc.
NX3L1G66GM,115
Texas Instruments
TS5A3159AYZPR
Nexperia USA Inc.
HEF4051BTT,118
Analog Devices Inc./Maxim Integrated
MAX337CPI+
Analog Devices Inc./Maxim Integrated
MAX4052CEE+T
Analog Devices Inc./Maxim Integrated
MAX4515CUK+T
Intersil

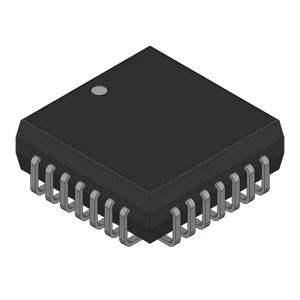

HI4P0547-5
onsemi

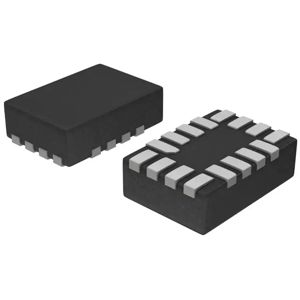

NLAS54405MT2TBG
