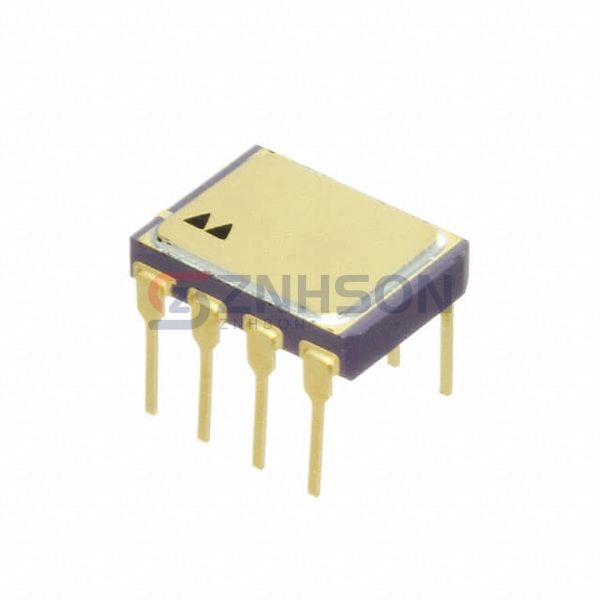

ACPL-5700L
Broadcom Limited
Broadcom Limited
OPTOISO 1.5KV DARLINGTON 8-DIP
$98.38
Available to order
Reference Price (USD)
1+
$81.51000
10+
$76.07300
25+
$74.71480
100+
$68.46590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure optimal performance in your electronic designs with ACPL-5700L Optoisolators from Broadcom Limited. Featuring Photovoltaic Output, these isolators are ideal for applications in automotive, IoT, and smart grid systems, offering high-speed signal transmission and robust isolation. Backed by Broadcom Limited's expertise, these components are a smart investment for any project. Contact us today to discuss your requirements and receive a tailored quote!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 1500VDC
- Current Transfer Ratio (Min): 200% @ 5mA
- Current Transfer Ratio (Max): -
- Turn On / Turn Off Time (Typ): 2µs, 6µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington
- Voltage - Output (Max): 20V
- Current - Output / Channel: 40mA
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 10 mA
- Vce Saturation (Max): -
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: 8-CDIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
