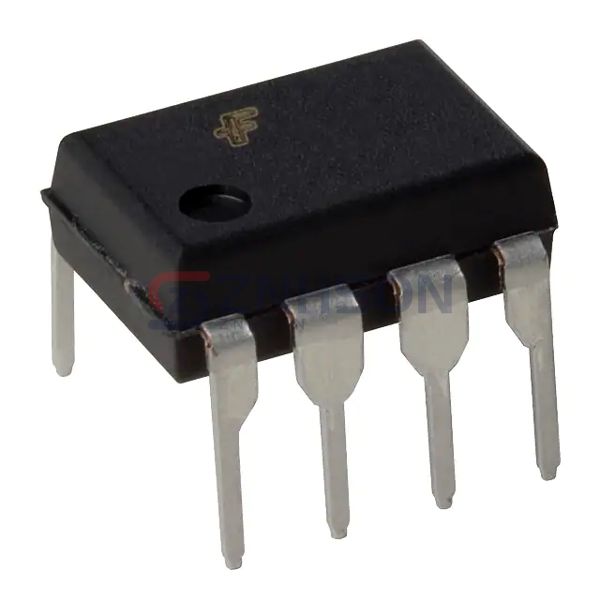

HCPL2530M
Fairchild Semiconductor
Fairchild Semiconductor
LOGIC IC OUTPUT OPTOCOUPLER, 2-E
$0.92
Available to order
Reference Price (USD)
1,000+
$0.99719
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's reliability with HCPL2530M Optoisolators by Fairchild Semiconductor, featuring advanced Photovoltaic Output technology. Perfect for use in audio equipment, lighting controls, and instrumentation, these isolators deliver high voltage isolation and low signal distortion. Fairchild Semiconductor guarantees components that meet rigorous industry standards. Don't wait get in touch today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Number of Channels: 2
- Voltage - Isolation: 2500Vrms
- Current Transfer Ratio (Min): 7% @ 16mA
- Current Transfer Ratio (Max): 50% @ 16mA
- Turn On / Turn Off Time (Typ): 450ns, 500ns
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Transistor
- Voltage - Output (Max): 20V
- Current - Output / Channel: 8mA
- Voltage - Forward (Vf) (Typ): 1.45V
- Current - DC Forward (If) (Max): 25 mA
- Vce Saturation (Max): -
- Operating Temperature: -55°C ~ 100°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
