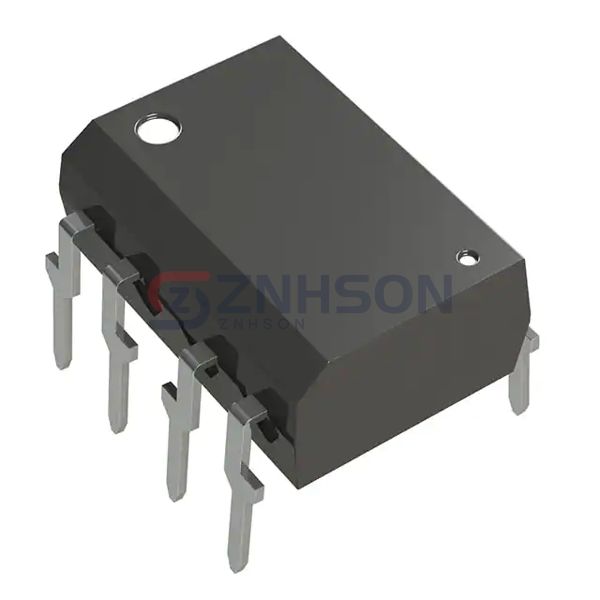

6N137F
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
OPTOISO 2.5KV 1CH OPEN COLL 8DIP
$0.00
Available to order
Reference Price (USD)
1+
$1.41000
10+
$1.14400
50+
$0.88000
100+
$0.79200
250+
$0.70400
500+
$0.59840
1,000+
$0.49280
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with Toshiba Semiconductor and Storage 6N137F Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust Toshiba Semiconductor and Storage for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 2500Vrms
- Common Mode Transient Immunity (Min): 200V/µs, 500V/µs (Typ)
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 50 mA
- Data Rate: 10MBd
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 30ns, 30ns
- Voltage - Forward (Vf) (Typ): 1.65V
- Current - DC Forward (If) (Max): 20mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
