HCPL-7723-500
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV PUSH PULL 8DIP GW
$0.00
Available to order
Reference Price (USD)
1,000+
$3.82850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your circuit protection with Broadcom Limited HCPL-7723-500 Optoisolators - Logic Output. These isolators provide superior electrical isolation, low power dissipation, and high common-mode rejection, perfect for medical devices, test equipment, and IoT applications. Trust Broadcom Limited for cutting-edge solutions. Reach out for a customized quote!
Specifications
- Product Status: Discontinued at Digi-Key
- Number of Channels: 1
- Inputs - Side 1/Side 2: 1/0
- Voltage - Isolation: 3750Vrms
- Common Mode Transient Immunity (Min): 10kV/µs
- Input Type: Logic
- Output Type: Push-Pull, Totem Pole
- Current - Output / Channel: 10 mA
- Data Rate: 50MBd
- Propagation Delay tpLH / tpHL (Max): 22ns, 22ns
- Rise / Fall Time (Typ): 8ns, 6ns
- Voltage - Forward (Vf) (Typ): -
- Current - DC Forward (If) (Max): -
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-SMD, Gull Wing
- Supplier Device Package: 8-DIP Gull Wing
Related Products
onsemi
FOD0708
CEL
PS9617L-E3-A
Broadcom Limited
HCPL-2201#560
Toshiba Semiconductor and Storage
TLP754(TP1,F)
Broadcom Limited
HCPL-263L-320
Toshiba Semiconductor and Storage
TLP2395(TPL,E

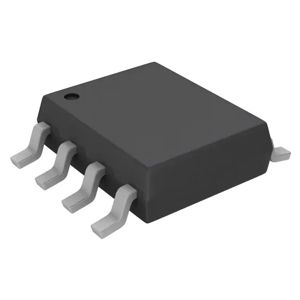

Toshiba Semiconductor and Storage
TLP2168(F)
onsemi
H11N33SD

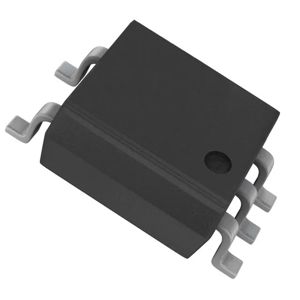

Sharp Microelectronics
