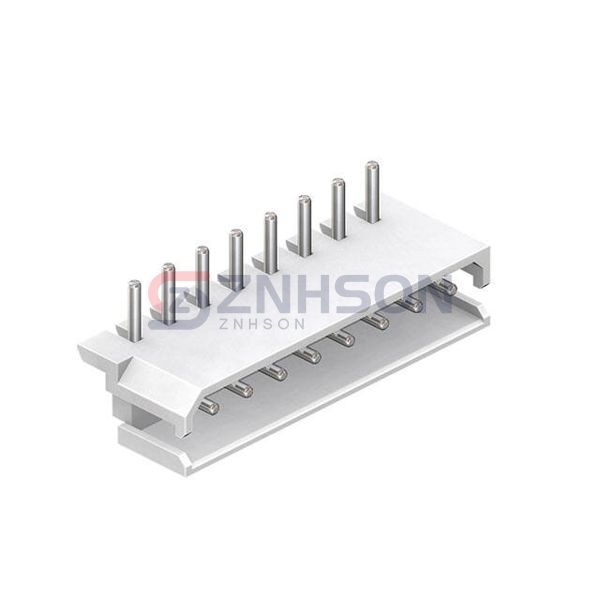

52125-08-0200-01
CNC Tech
CNC Tech
WIRE-TO BOARD HEADER, 2.5MM, 8 C
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 52125-08-0200-01 CNC Tech Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): 3A
- Voltage Rating: 250V
Related Products
Samtec Inc.

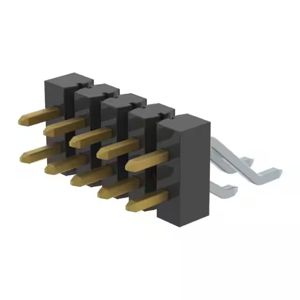

TSM-105-04-S-DH-K-TR
TE Connectivity AMP Connectors
9-103801-0-34
Samtec Inc.
EHT-110-01-S-D-SM
Samtec Inc.

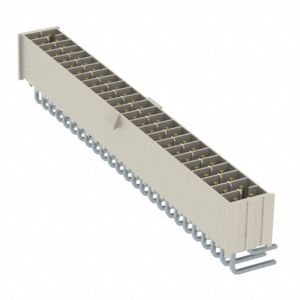

IPL1-125-01-S-D-RA-K
Samtec Inc.
FTSH-110-01-LM-DH-A
Harwin Inc.

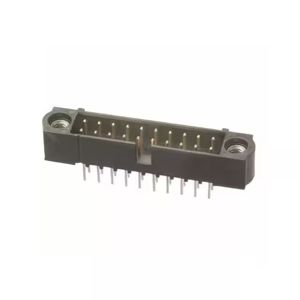

M80-5014005
Mill-Max Manufacturing Corp.

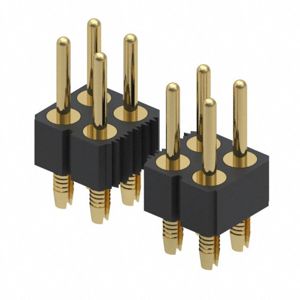

802-10-040-62-001000
Molex

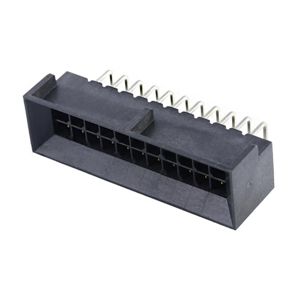

0444282202
