5-103414-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 2.54MM
$1.44
Available to order
Reference Price (USD)
1+
$1.23000
50+
$0.97300
100+
$0.93070
500+
$0.76148
1,000+
$0.67686
5,000+
$0.59226
10,000+
$0.56264
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5-103414-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.589" (14.96mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-116-25-L-S-RA
Sullins Connector Solutions
PBC14DBDN
Samtec Inc.
TFC-145-02-L-D
Preci-Dip
350-80-111-00-001101
Preci-Dip
350-10-132-00-001101
Mill-Max Manufacturing Corp.
800-10-002-20-001000
Samtec Inc.
TSM-122-01-LM-DV-A-P-TR
Samtec Inc.

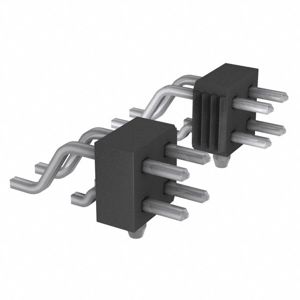

TSM-110-04-T-DH-A-P-TR
