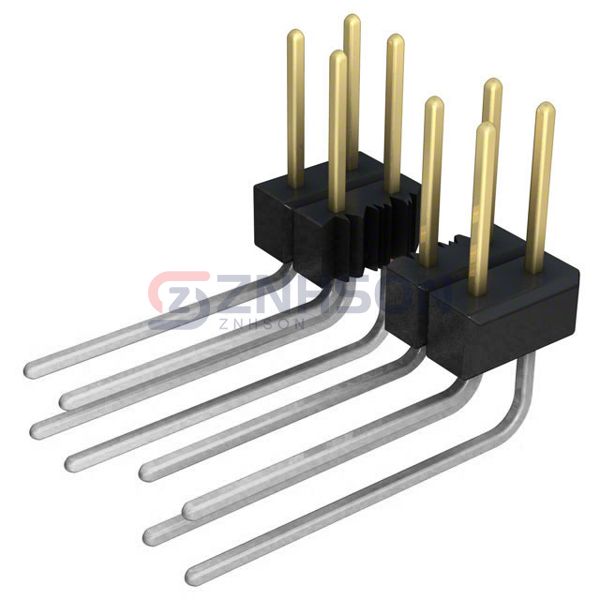

PBC14DBDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 28POS 2.54MM
$5.51
Available to order
Reference Price (USD)
1+
$5.51000
10+
$4.92600
100+
$4.05670
500+
$3.20670
1,000+
$2.75274
5,000+
$2.51128
10,000+
$2.41469
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC14DBDN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Discontinued at Digi-Key
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.400" (10.16mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TFC-145-02-L-D
Preci-Dip
350-80-111-00-001101
Preci-Dip
350-10-132-00-001101
Mill-Max Manufacturing Corp.
800-10-002-20-001000
Samtec Inc.
TSM-122-01-LM-DV-A-P-TR
Samtec Inc.
TSM-110-04-T-DH-A-P-TR
Amphenol ICC (FCI)
77319-803-32LF

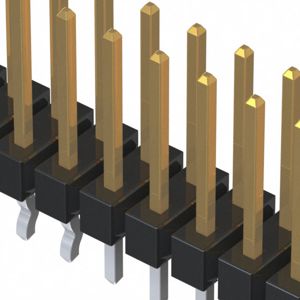

Molex
