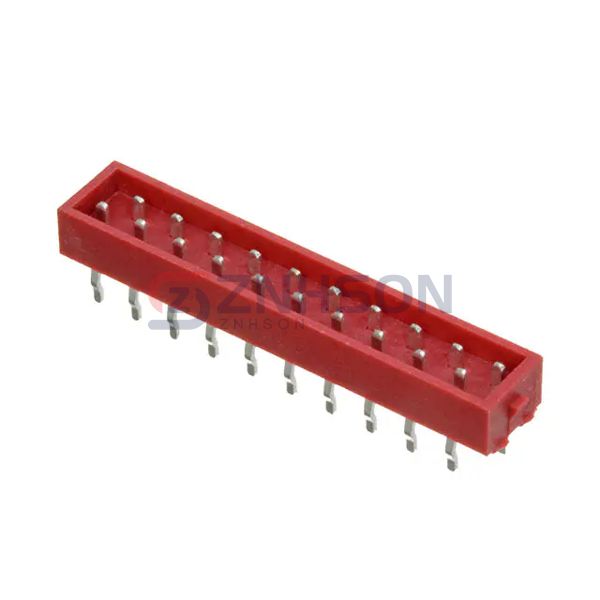

3522-20-0100-99
CNC Tech
CNC Tech
CONN HEADER VERT 20POS 2.54MM
$1.76
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32300
100+
$1.13400
500+
$0.94500
1,000+
$0.81000
5,000+
$0.71820
10,000+
$0.70200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with 3522-20-0100-99 CNC Tech Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
Related Products
Samtec Inc.
FTSH-145-01-F-DV-A
Molex
0878313010
Preci-Dip
353-10-141-00-001101
Samtec Inc.
FTSH-107-04-F-DV-A-P
Samtec Inc.
FTSH-133-01-L-D
Omron Electronics Inc-EMC Div
XG8W-3444
JAE Electronics
MX23A18NF1
TE Connectivity AMP Connectors

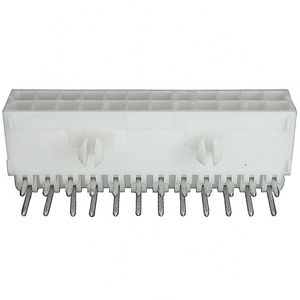

794108-2
