MX23A18NF1

JAE Electronics

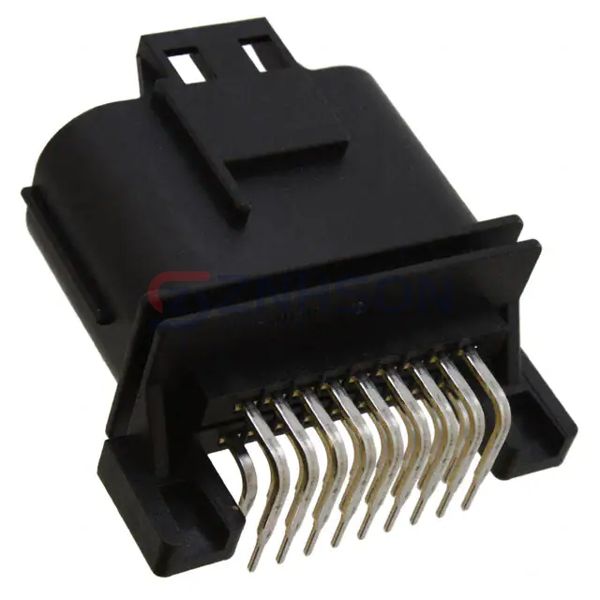

MX23A18NF1 Preview
JAE Electronics
CONN HEADER R/A 18POS 2.5MM
$7.96
Available to order
Reference Price (USD)
1+
$7.08000
10+
$6.78500
160+
$5.60500
640+
$4.72000
1,120+
$4.13000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header
  • Contact Type: Male Pin
  • Pitch - Mating: 0.098" (2.50mm)
  • Number of Positions: 18
  • Number of Rows: 2
  • Row Spacing - Mating: 0.173" (4.40mm)
  • Number of Positions Loaded: All
  • Style: Board to Cable/Wire
  • Shrouding: Shrouded - 4 Wall
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Contact Length - Mating: -
  • Contact Length - Post: 0.122" (3.10mm)
  • Overall Contact Length: -
  • Insulation Height: 0.720" (18.30mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: -
  • Contact Finish - Post: Tin
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
  • Features: Board Guide
  • Operating Temperature: -40°C ~ 125°C
  • Ingress Protection: Waterproof
  • Material Flammability Rating: -
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -
