0533984009
Molex
Molex
HDR VERT 9 CIRC 1.25 SMD
$0.70
Available to order
Reference Price (USD)
1+
$0.69853
500+
$0.6915447
1000+
$0.6845594
1500+
$0.6775741
2000+
$0.6705888
2500+
$0.6636035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 0533984009 Molex Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
TE Connectivity AMP Connectors
825440-9
Samtec Inc.
TSW-120-17-G-S
Sullins Connector Solutions
PBC11DGAN
Assmann WSW Components
AWH 14G-0202-T
Amphenol ICC (FCI)
77311-487-05LF
Samtec Inc.
FTE-108-01-G-DH-K-TR

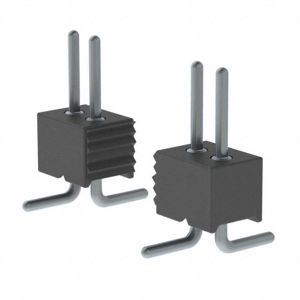

Mill-Max Manufacturing Corp.
850-40-047-30-001000
Samtec Inc.
FTSH-111-01-LM-DH

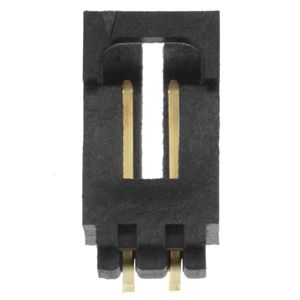

Molex
