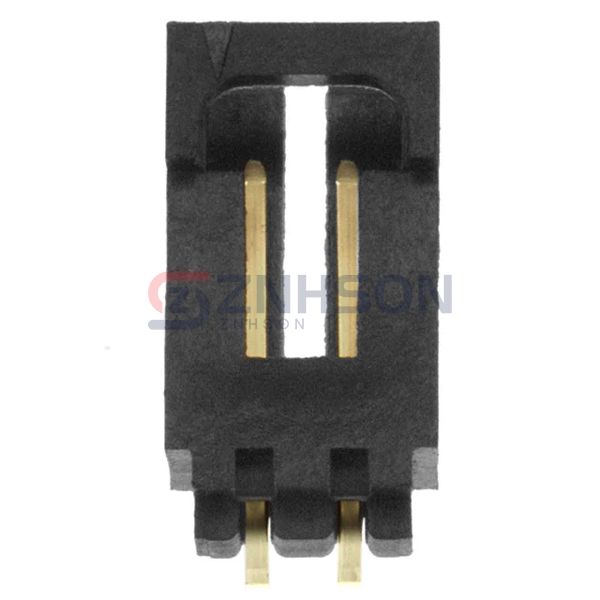

0705530106
Molex
Molex
CONN HEADER R/A 2POS 2.54MM
$1.75
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.25000
100+
$1.07100
500+
$0.89250
2,880+
$0.71400
5,760+
$0.67830
11,520+
$0.66300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0705530106 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.215" (5.45mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products
Harwin Inc.
M30-6101046
Amphenol ICC (FCI)
10129383-904001BLF
Samtec Inc.
TSM-106-01-FM-SH-LC-002
Mill-Max Manufacturing Corp.
850-40-039-20-001000
Samtec Inc.
FTE-120-01-G-DV-A-TR
Würth Elektronik
61302421121
Amphenol ICC (FCI)
68464-272
Molex

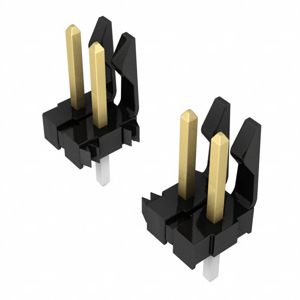

0416710012
