0022236075
Molex
Molex
CONN HEADER VERT 7POS 2.54MM
$0.74
Available to order
Reference Price (USD)
500+
$0.93048
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0022236075 Molex Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.305" (7.75mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: 0.520" (13.21mm)
- Insulation Height: 0.322" (8.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
HTSW-107-06-G-S
Samtec Inc.
ZSS-108-09-L-D-1340
Würth Elektronik
64902229522
Samtec Inc.
TMM-116-06-S-D
TE Connectivity AMP Connectors
641208-8
Sullins Connector Solutions
PEC36DAHN
Samtec Inc.

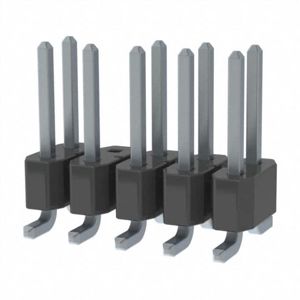

TSM-105-01-T-DV-008
Samtec Inc.

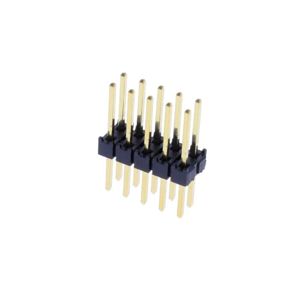

TSW-105-22-G-D
JST Sales America Inc.

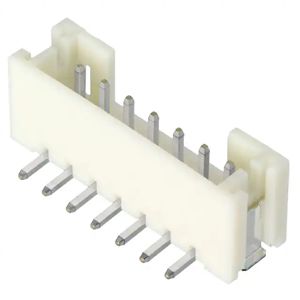

B7B-PH-SM4-TB(LF)(SN)
