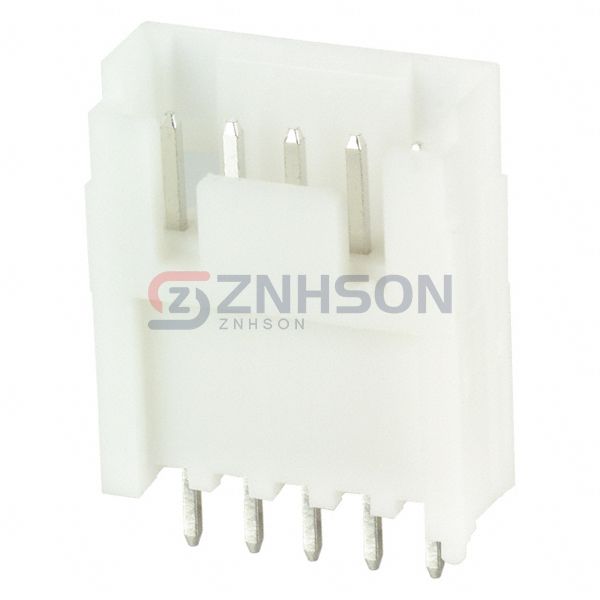

DF1BD-5P-2.5DSA(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 5POS 2.5MM
$0.76
Available to order
Reference Price (USD)
100+
$0.72300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DF1BD-5P-2.5DSA(05) Hirose Electric Co Ltd Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.689" (17.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Keying Slot
- Operating Temperature: -35°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 250V
Related Products

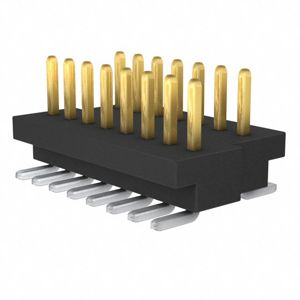

Samtec Inc.
BKT-121-05-F-V-S
Samtec Inc.
TSS-116-04-L-D-RA

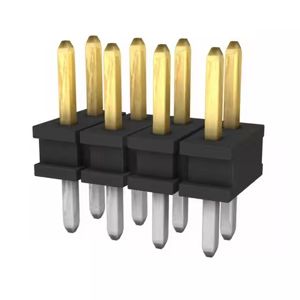

Samtec Inc.
TMMH-104-04-L-D

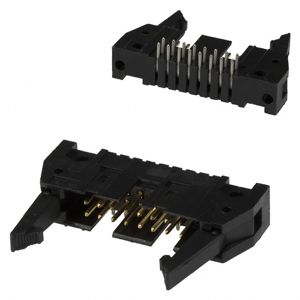

TE Connectivity AMP Connectors
102322-3

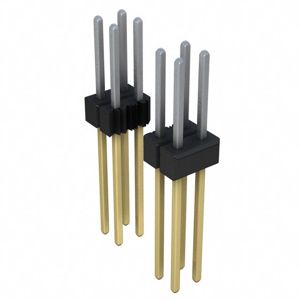

Sullins Connector Solutions
PBC26DFEN
Samtec Inc.
FTSH-125-04-L-MT

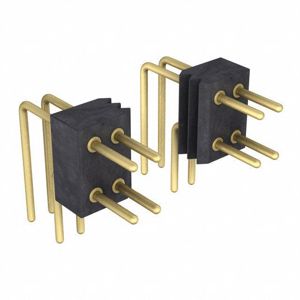

Preci-Dip
852-10-056-20-002101

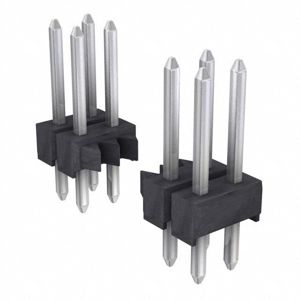

Harwin Inc.
M20-9973646

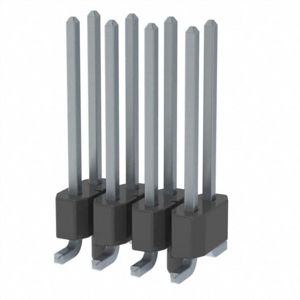

Samtec Inc.
