0010897201

Molex

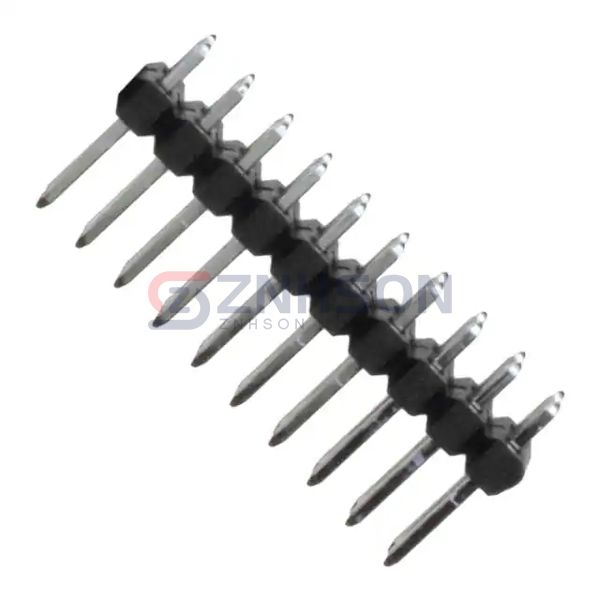

0010897201 Preview
Molex
CONN HEADER VERT 20POS 2.54MM
$1.94
Available to order
Reference Price (USD)
1+
$1.84000
10+
$1.67300
25+
$1.57040
50+
$1.50220
100+
$1.43390
250+
$1.29732
500+
$1.19490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 20
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.240" (6.10mm)
  • Contact Length - Post: 0.107" (2.71mm)
  • Overall Contact Length: 0.437" (11.10mm)
  • Insulation Height: 0.090" (2.29mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 150.0µin (3.81µm)
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Features: -
  • Operating Temperature: -
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -

Related Products

Sullins Connector Solutions

PRPC021SBAN-M71RC

Amphenol ICC (FCI)

68020-130HLF

TE Connectivity AMP Connectors

9-146252-0-39

Samtec Inc.

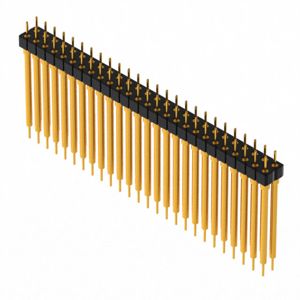

BBD-126-G-D
