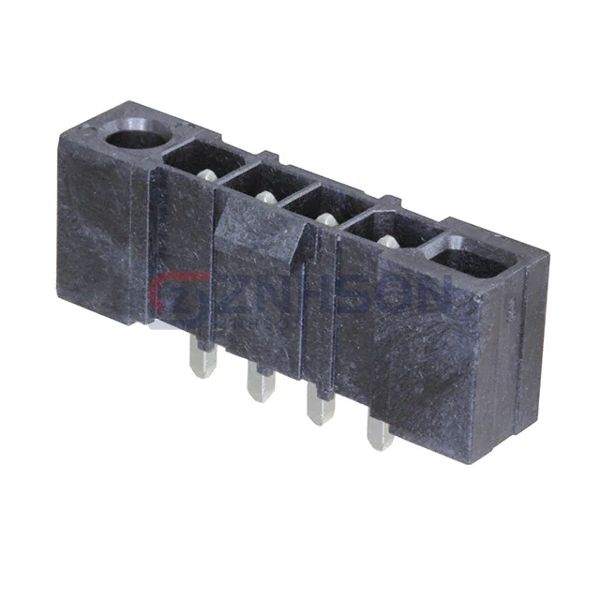

IPBT-104-H1-T-S-GP
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 4POS 4.20MM
$2.78
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.44300
100+
$1.23690
500+
$1.03076
1,000+
$0.88350
5,000+
$0.78337
10,000+
$0.76570
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-104-H1-T-S-GP Samtec Inc. Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Samtec Inc. difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
Samtec Inc.
TMM-103-02-F-D
Mill-Max Manufacturing Corp.
852-40-066-20-001000
Assmann WSW Components
AWH 26A-0232-T
Samtec Inc.
MMT-106-01-F-DH-P
Preci-Dip
800-80-044-10-001101
Samtec Inc.

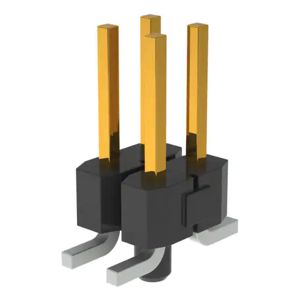

TSM-102-01-LM-DV-A-TR
Adam Tech

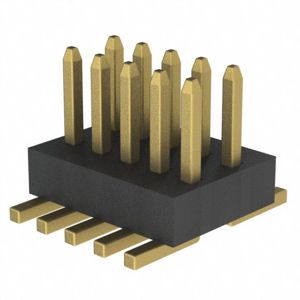

SPH2-10-U-SMT
