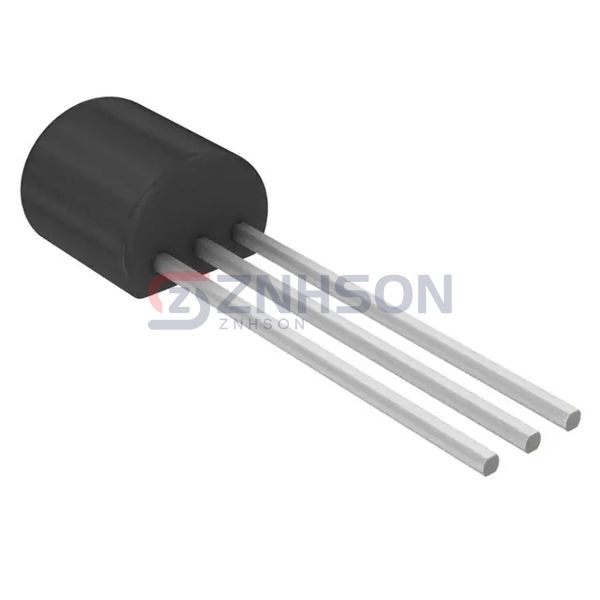

ZTX776STZ
Diodes Incorporated
Diodes Incorporated
TRANS PNP 200V 1A E-LINE
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with ZTX776STZ by Diodes Incorporated, a leader in Discrete Semiconductor Products. These Transistors - Bipolar (BJT) - Single are designed for precision and reliability, offering excellent linearity and low distortion. Whether for RF applications or general-purpose switching, ZTX776STZ is the perfect fit. Contact us today to learn more and place your order with Diodes Incorporated.
Specifications
- Product Status: Obsolete
- Transistor Type: PNP
- Current - Collector (Ic) (Max): 1 A
- Voltage - Collector Emitter Breakdown (Max): 200 V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 200mA, 1A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 50 @ 500mA, 5V
- Power - Max: 1 W
- Frequency - Transition: 30MHz
- Operating Temperature: -55°C ~ 200°C (TJ)
- Mounting Type: Through Hole
- Package / Case: E-Line-3, Formed Leads
- Supplier Device Package: E-Line (TO-92 compatible)
