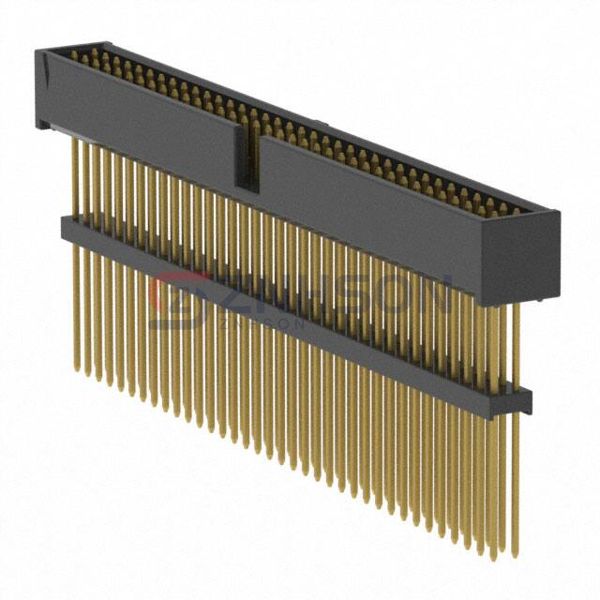

ZSS-136-09-G-D-830
Samtec Inc.
Samtec Inc.
CONN HDR .100" 72POS
$17.07
Available to order
Reference Price (USD)
1+
$17.07000
500+
$16.8993
1000+
$16.7286
1500+
$16.5579
2000+
$16.3872
2500+
$16.2165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience top-tier connectivity with ZSS-136-09-G-D-830 Samtec Inc. Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Samtec Inc. has you covered. Interested? Reach out to us for expert advice and competitive pricing!
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 72
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.600" (15.24mm)
- Overall Contact Length: 1.430" (36.32mm)
- Insulation Height: 0.830" (21.08mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Amphenol ICC (FCI)
10078991-G22-06ULF
Samtec Inc.
MMT-106-02-S-DH
Samtec Inc.
FTS-125-04-F-DV
Samtec Inc.
TSM-106-02-T-DH
Samtec Inc.
TMM-125-01-S-D-RE
TE Connectivity AMP Connectors

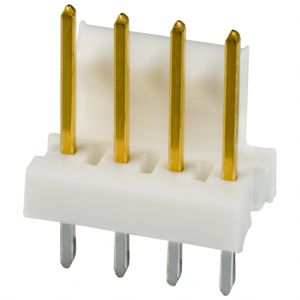

641215-4
Amphenol ICC (FCI)

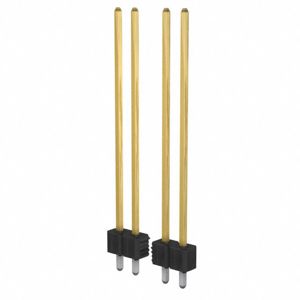

87185-116HLF
Molex

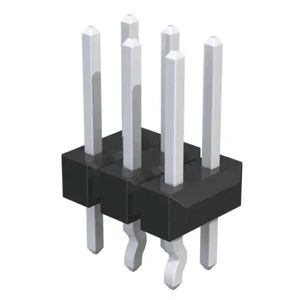

0702871001
Samtec Inc.

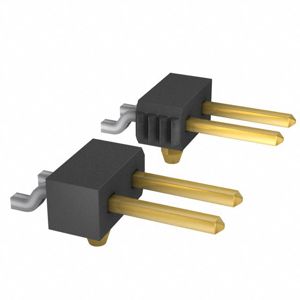

TSM-106-01-L-SH-A-K-TR
